Installation

5.7L





1. Clean MAP sensor mounting hole at intake manifold.




2. Check MAP sensor o-ring seal for cuts or tears.

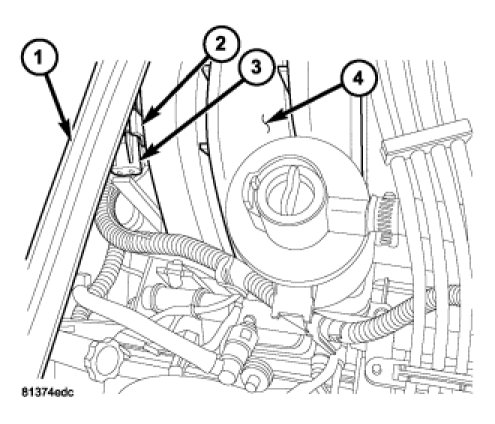

3. Position sensor into manifold (2).
4. Rotate sensor 1/4 turn clockwise for installation (3).
5. Connect electrical connector.
