Relay-Transmission Control

Component ID: 297

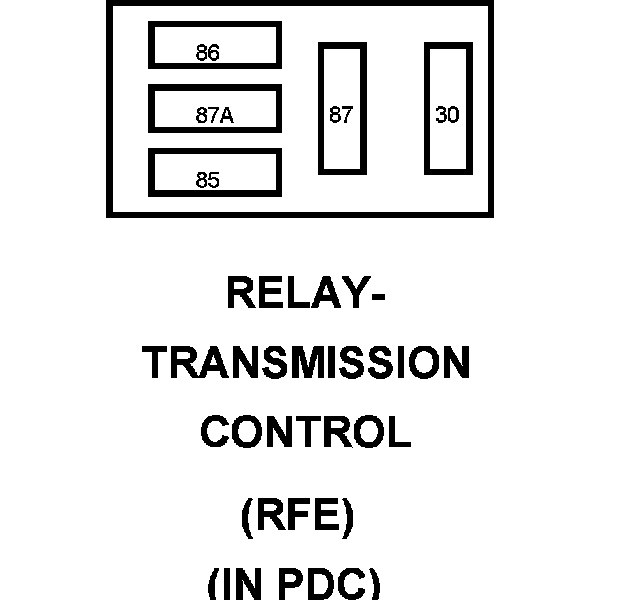

Component : RELAY-TRANSMISSION CONTROL

Connector:
Name : RELAY-TRANSMISSION CONTROL
Color :
# of pins : 0
Qualifier : (RFE)




30 A917 18RD/DG FUSED B(+)
85 Z387 20BK GROUND
86 T15 20YL/BR TRANSMISSION CONTROL
87 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
87A - -
