Body Control Systems

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

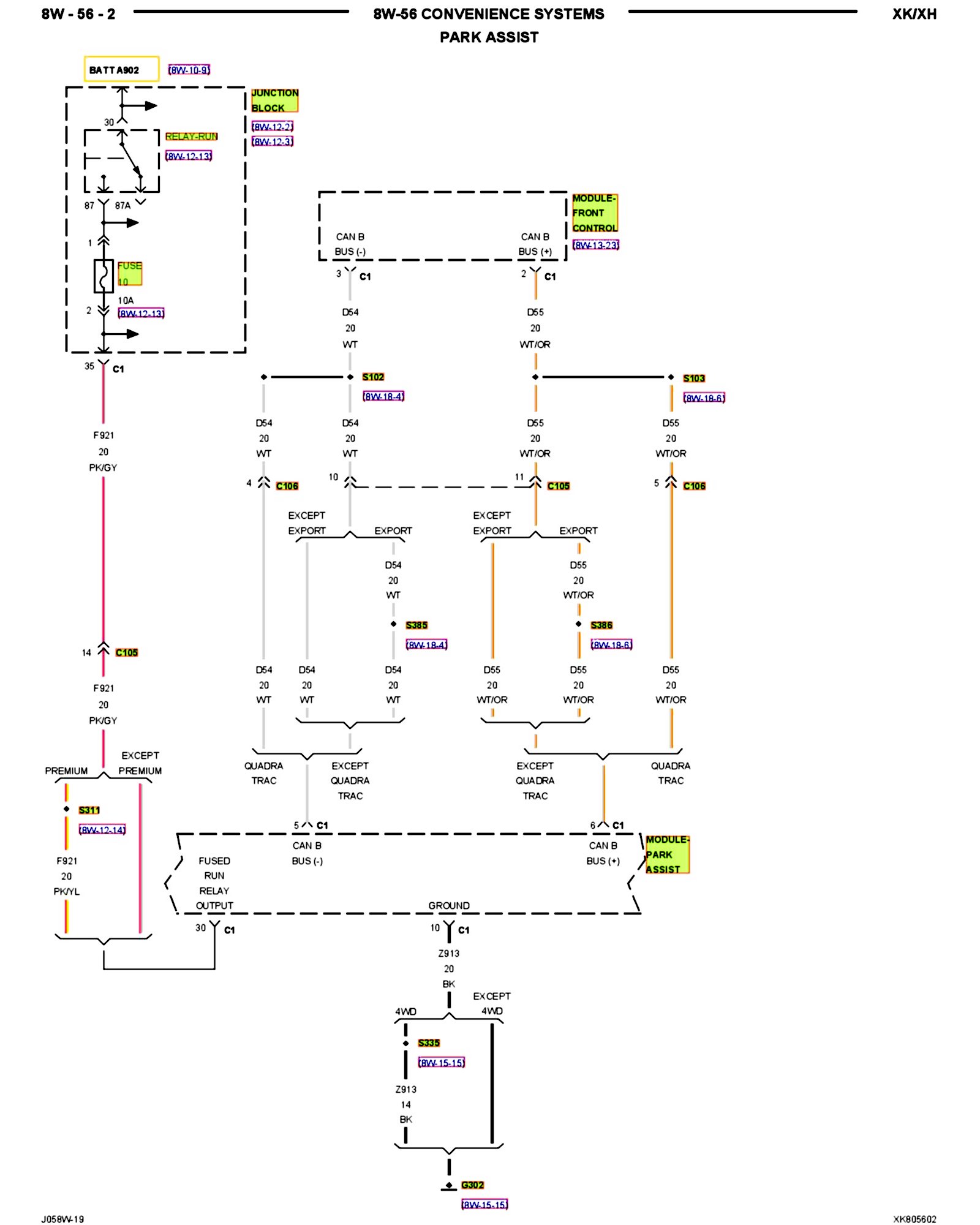

8w-56-02:

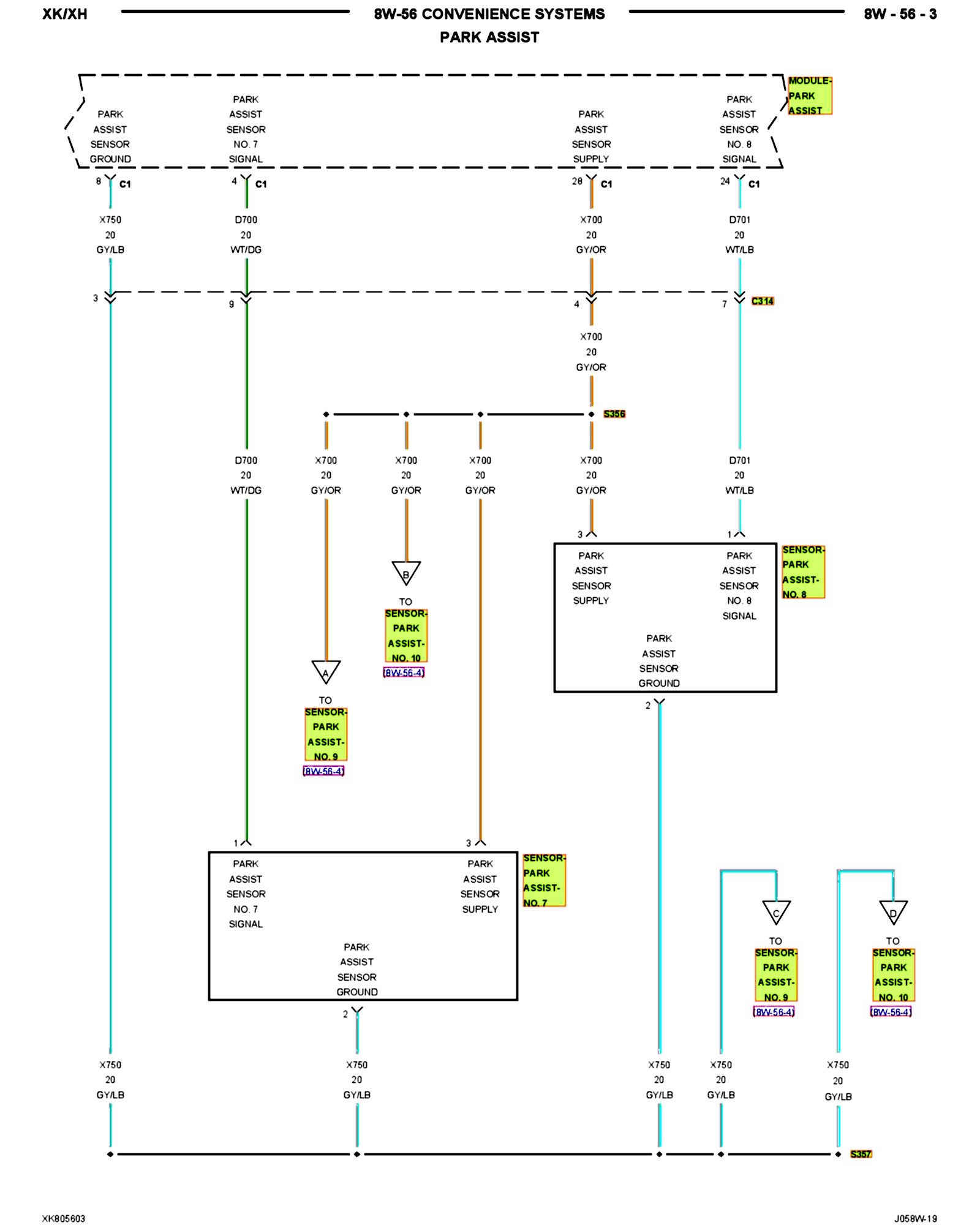

8w-56-03:

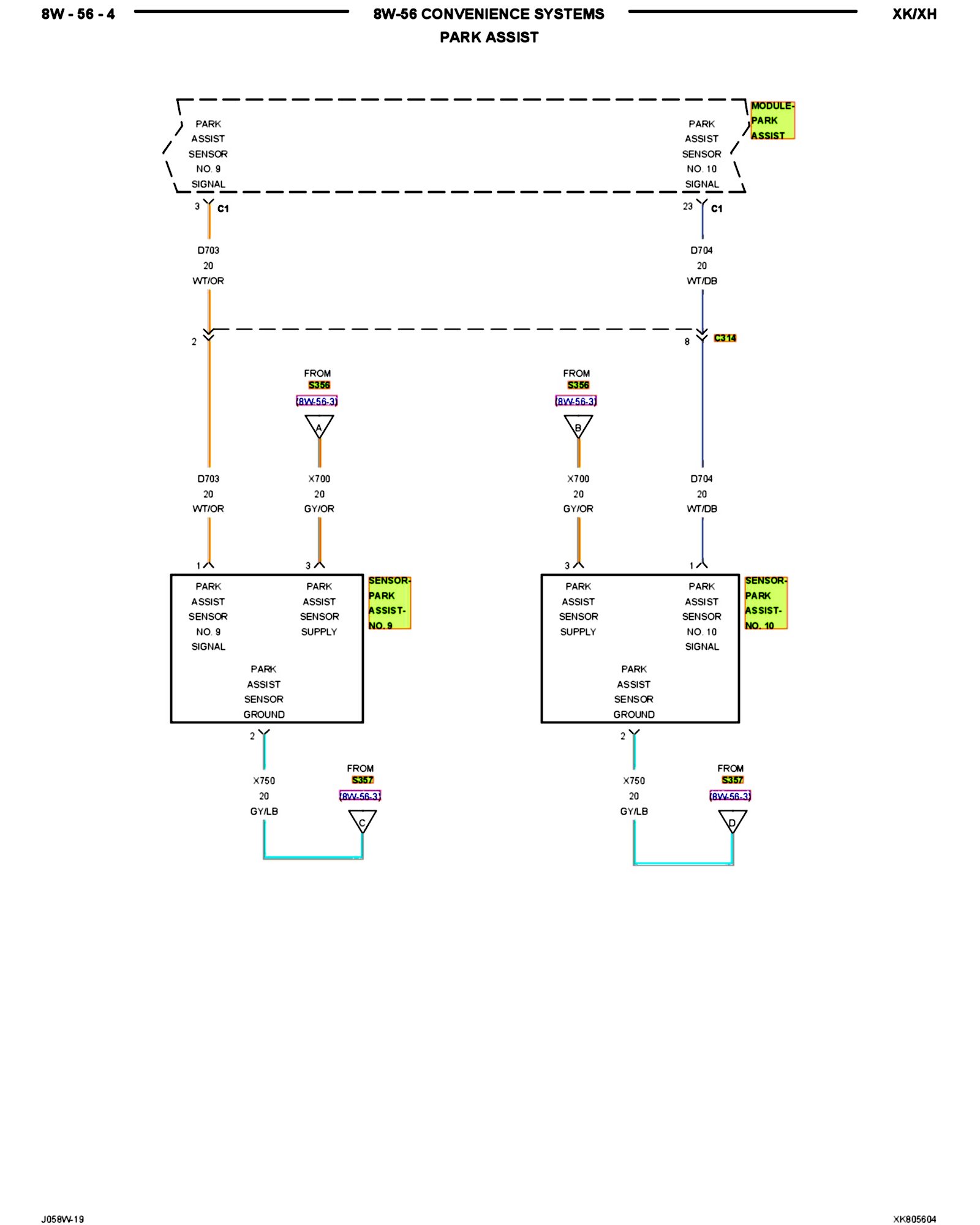

8w-56-04:

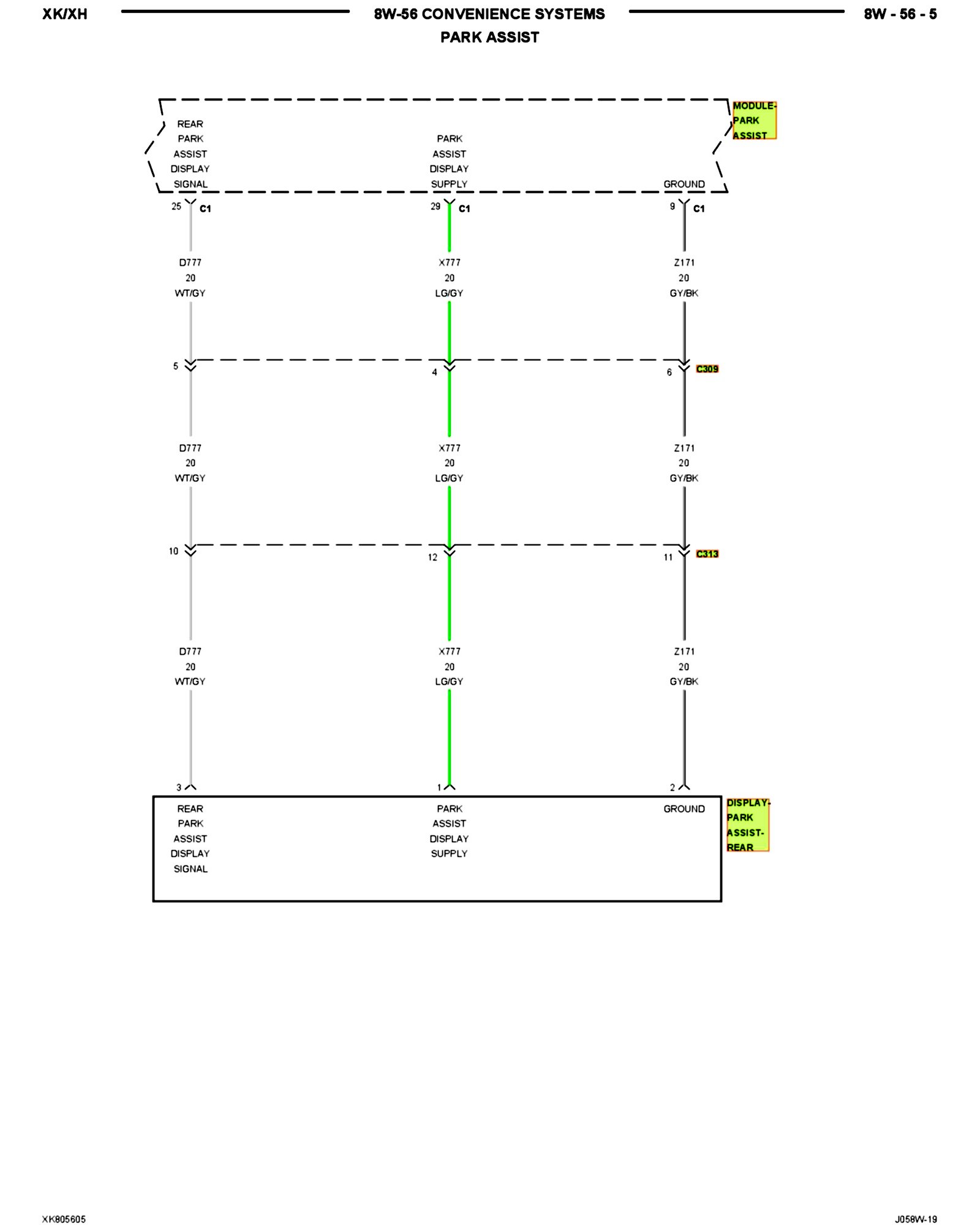

8w-56-05:

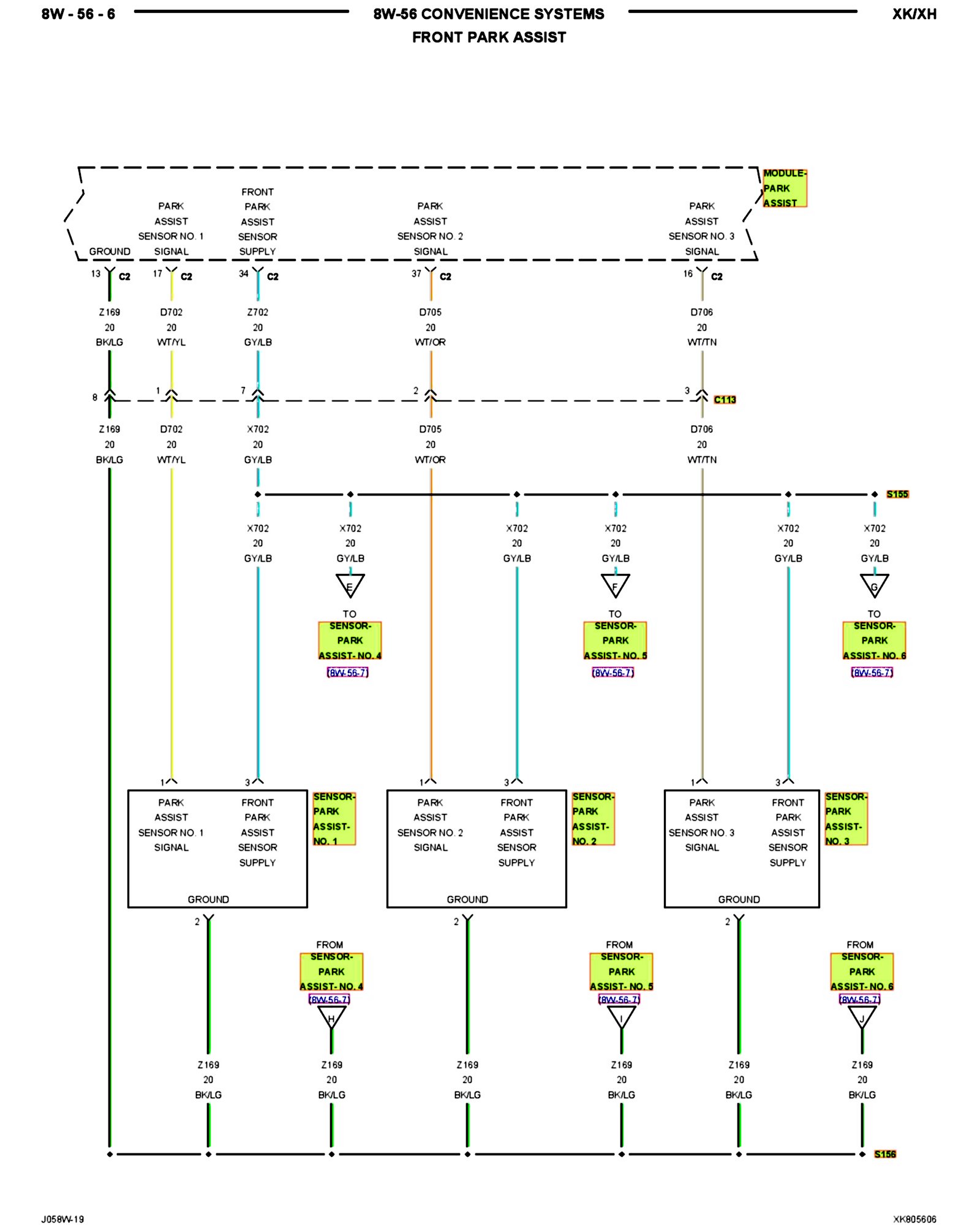

8w-56-06:

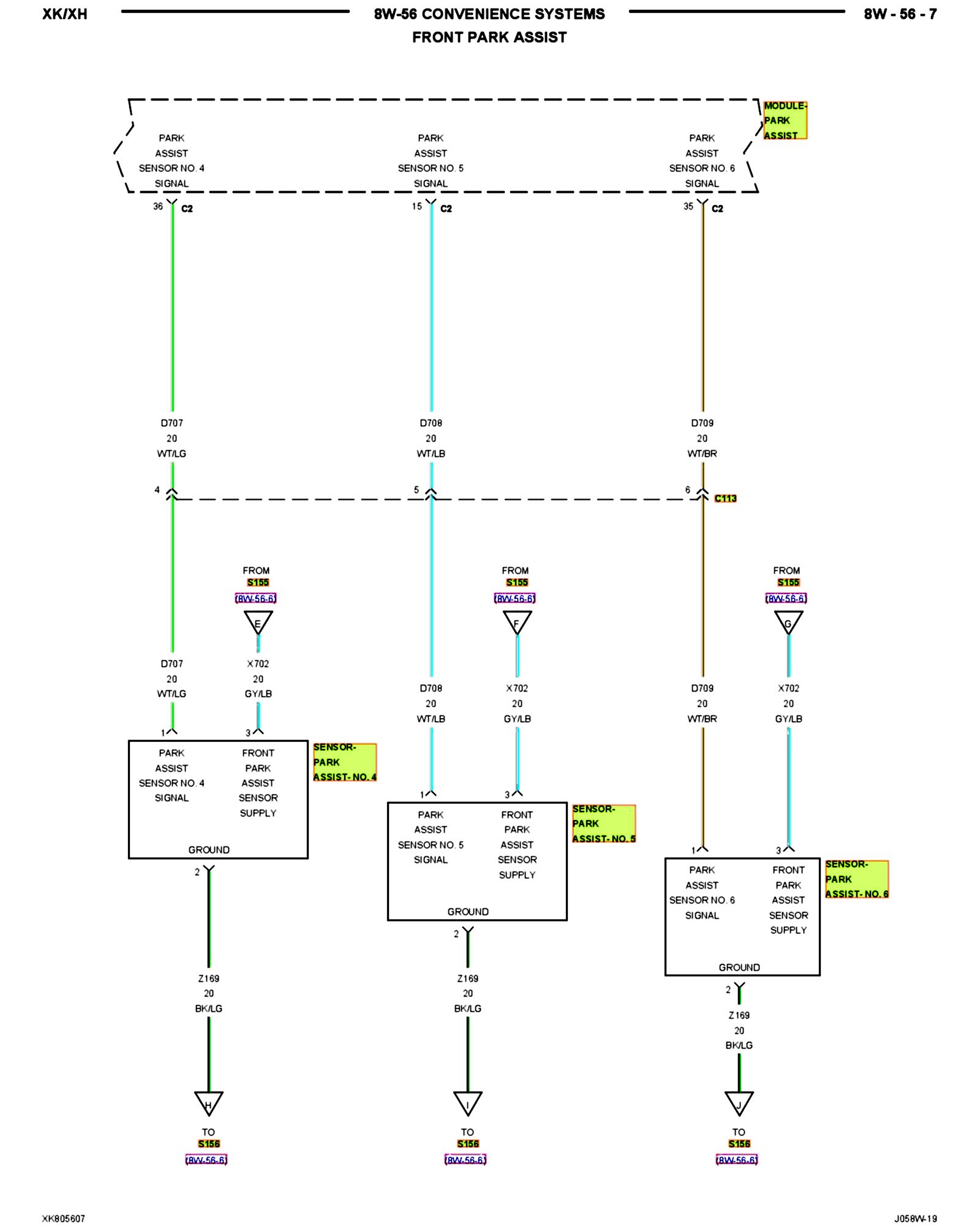

8w-56-07:

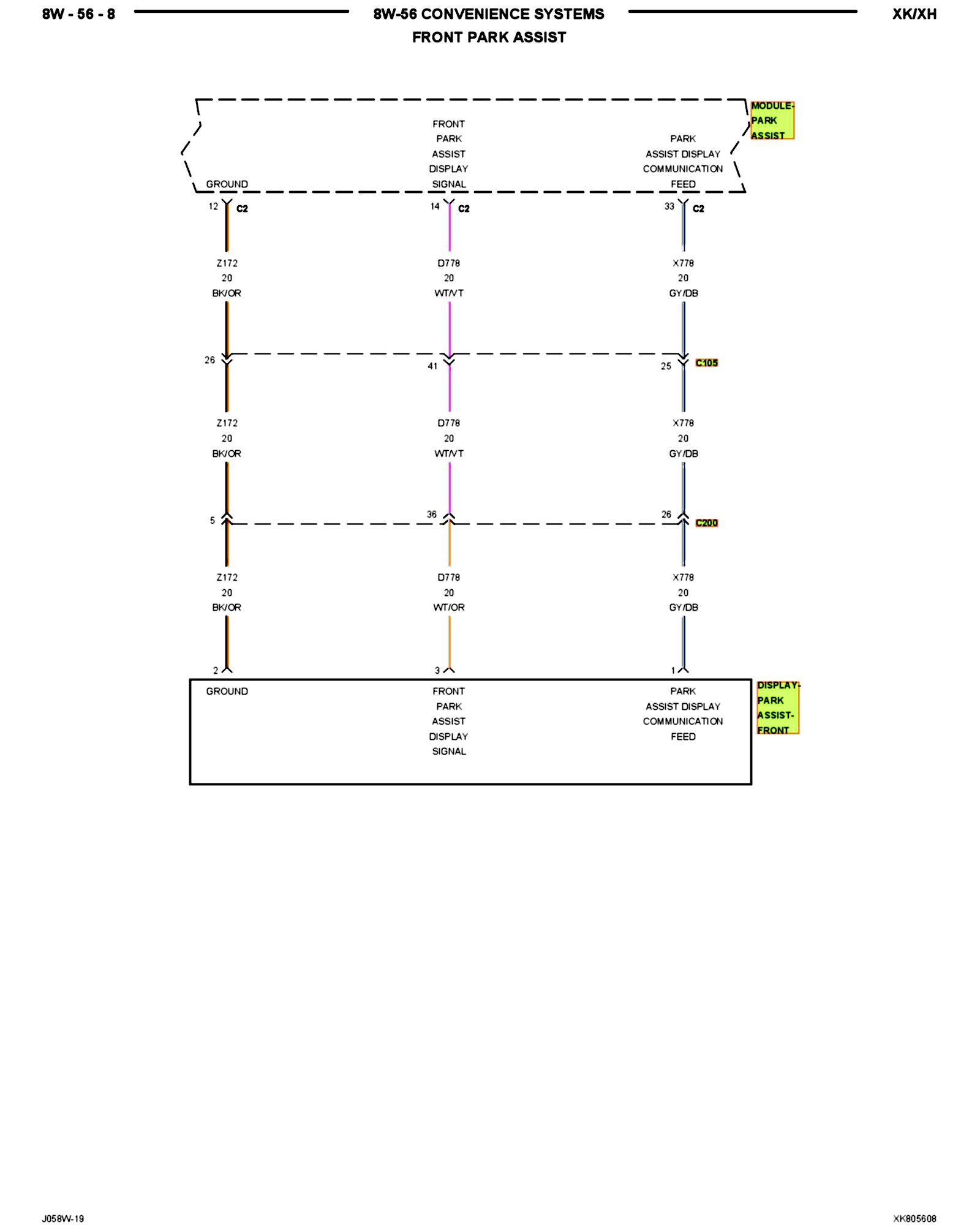

8w-56-08:

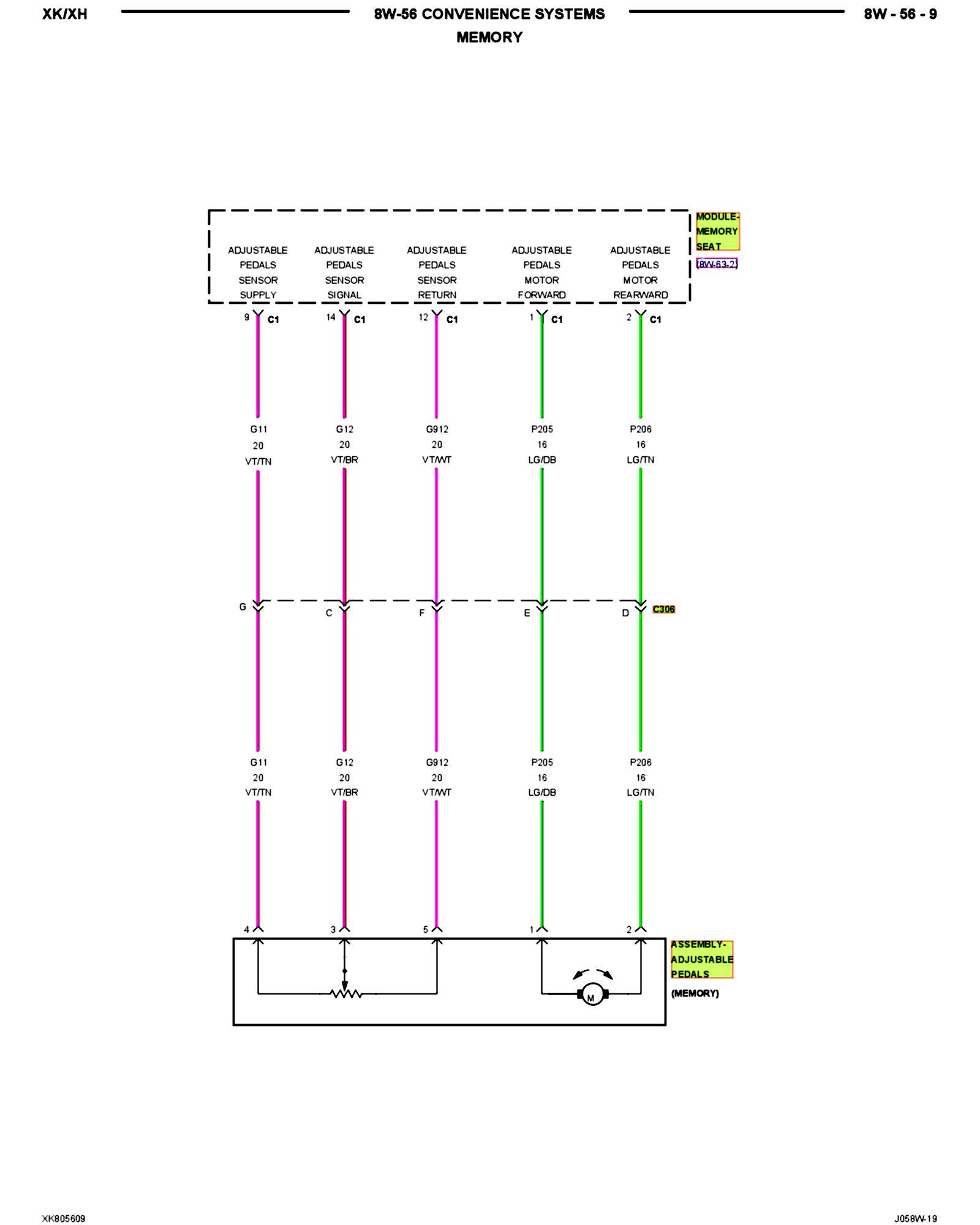

8w-56-09:

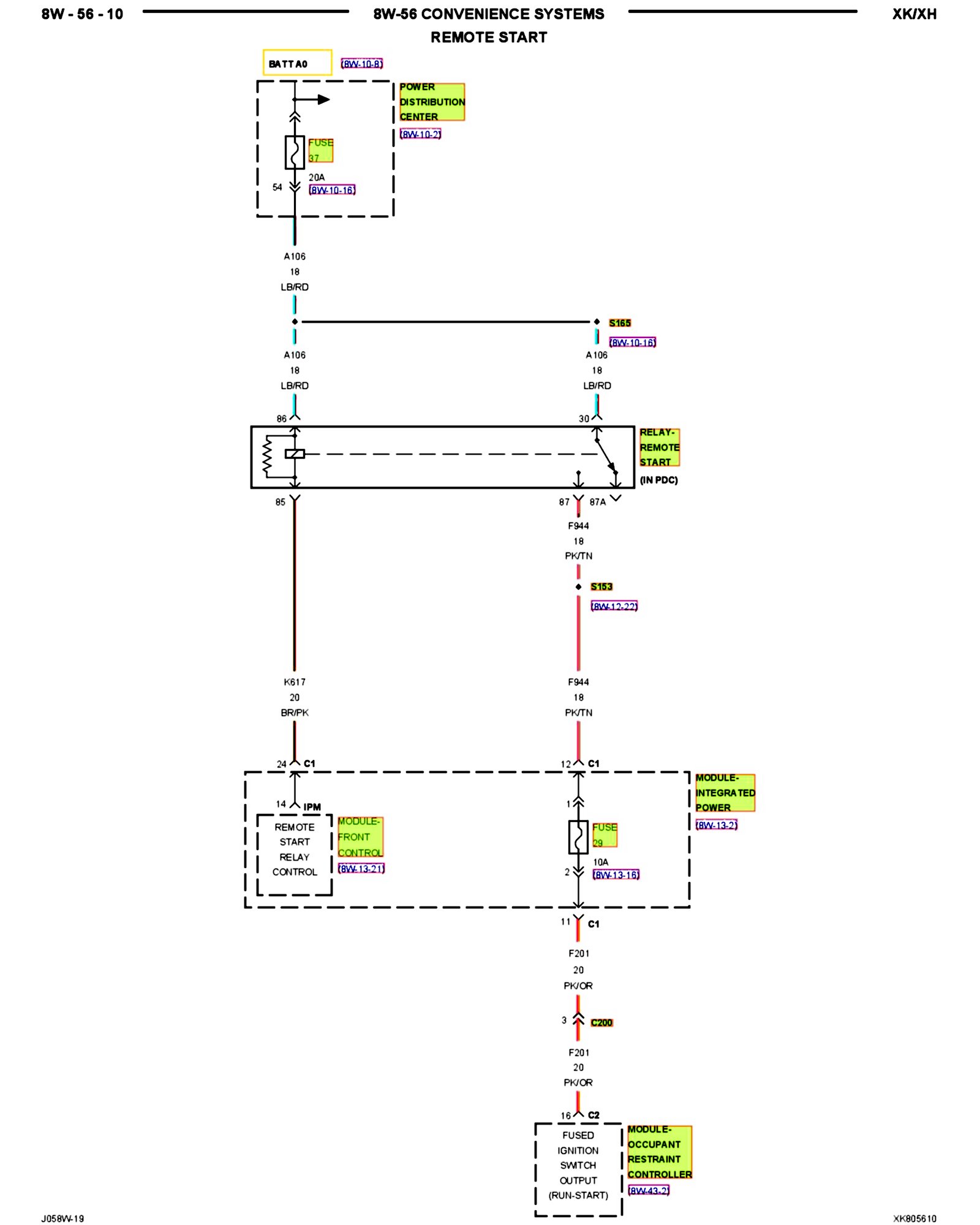

8w-56-10:

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
