Manifold Pressure/Vacuum Sensor: Locations

Component ID: 505

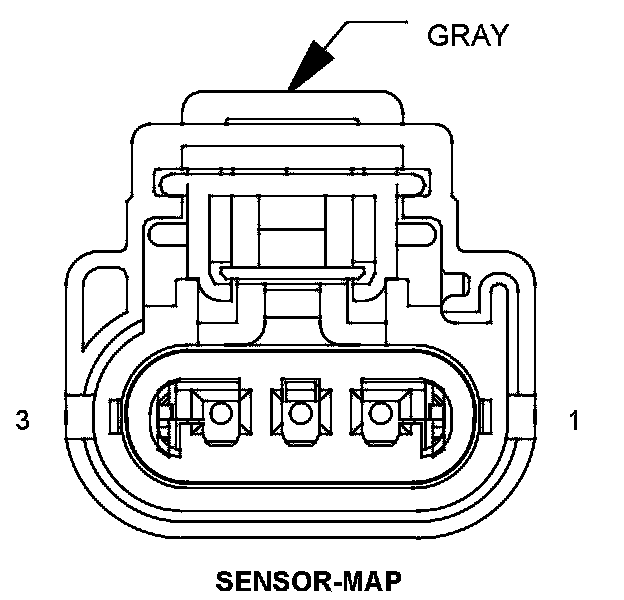

Component : SENSOR-MAP

Connector:
Name : SENSOR-MAP
Color : GRAY
# of pins : 3




Pin Circuit Description
1 K1 16VT/BR MAP SIGNAL
Pin Circuit Description
1 K1 20VT/BR MAP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 F856 20YL/PK 5 VOLT SUPPLY

Component Location - 15




Component Location - 25
