System Diagram

Component ID: 148
Component : GLASS-LIFTGATE-HEATED

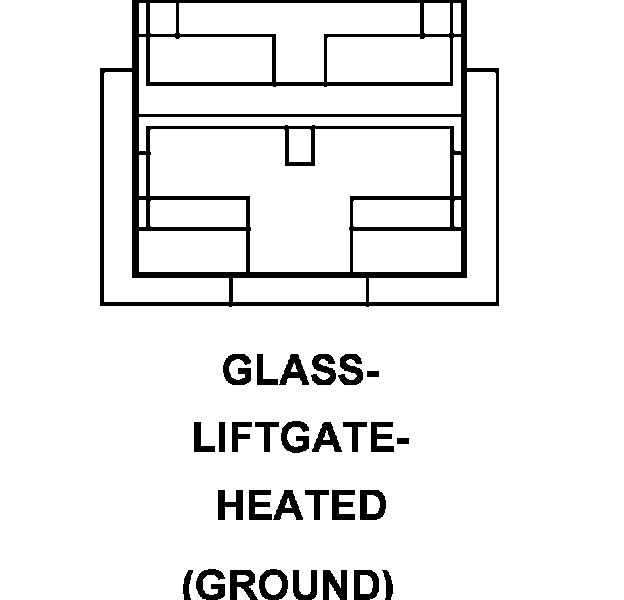

Connector:
Name : GLASS-LIFTGATE-HEATED
Color :
# of pins : 1
Qualifier : (GROUND)




Pin Circuit Description
1 Z800 12BK GROUND

Component Location - 75

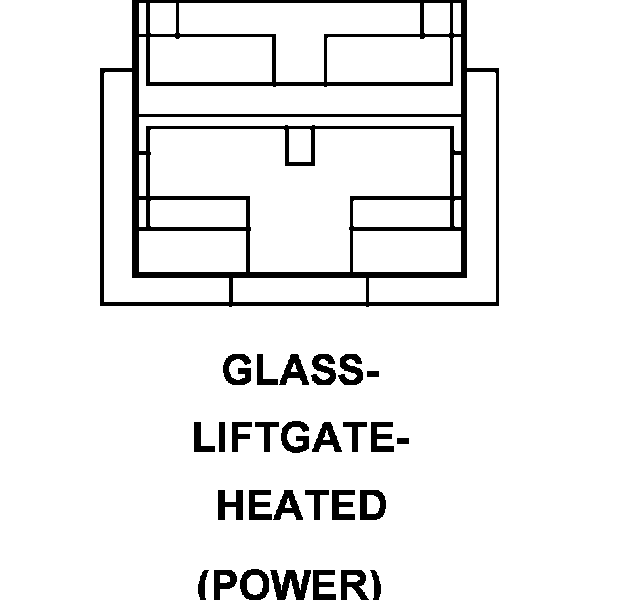

Connector:
Name : GLASS-LIFTGATE-HEATED
Color :
# of pins : 1
Qualifier : (POWER)




Pin Circuit Description
1 C515 12BK REAR WINDOW DEFOGGER RELAY OUTPUT

Component Location - 75
