Sensor-Liftgate Pinch-Right

Component ID: 503

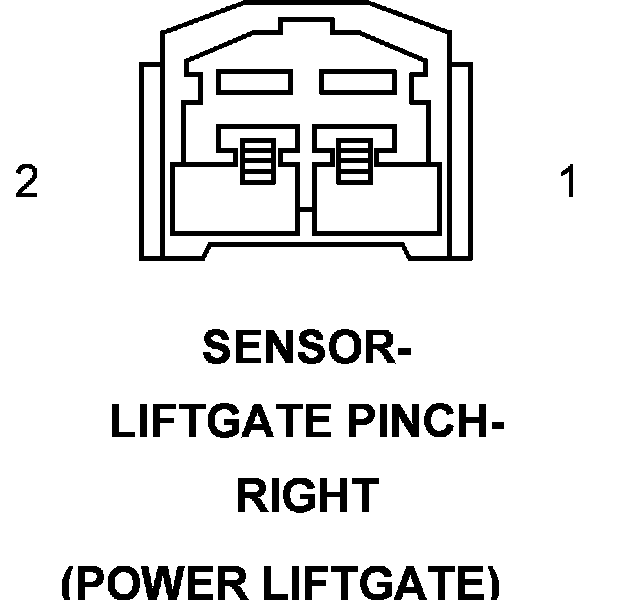

Component : SENSOR-LIFTGATE PINCH-RIGHT

Connector:
Name : SENSOR-LIFTGATE PINCH-RIGHT
Color :
# of pins : 2
Qualifier : (POWER LIFTGATE)




Pin Circuit Description
1 Q78 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q901 20OR/VT LOGIC GROUND
