Camshaft Position Sensor - Installation

5.7L/6.1L





1. Clean out machined hole in timing gear/chain cover.

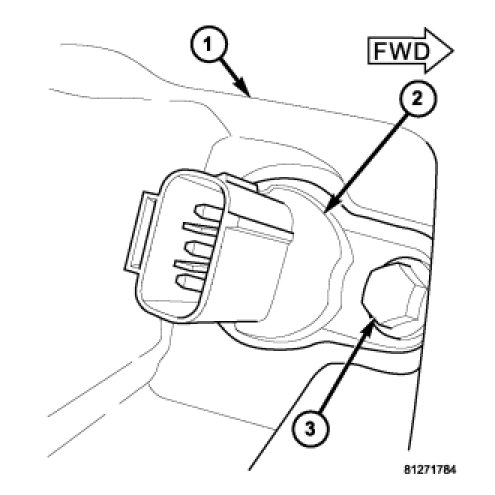

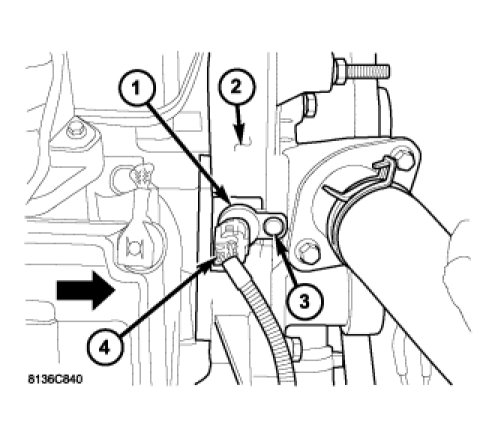

2. Install sensor (2) into timing gear/chain cover with a slight rocking action. Do not twist sensor into position as damage to O-ring may result.

CAUTION: Before tightening sensor mounting bolt, be sure sensor is completely flush to timing gear/chain cover. If sensor is not flush, damage to sensor mounting tang may result.

3. Install mounting bolt (3) and tighten to 12 Nm (106 in.lbs.).




4. Connect electrical connector (4) to sensor (1).
5. Install air resonator and tighten clamps.
