P0579-Speed Control Switch 1 Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

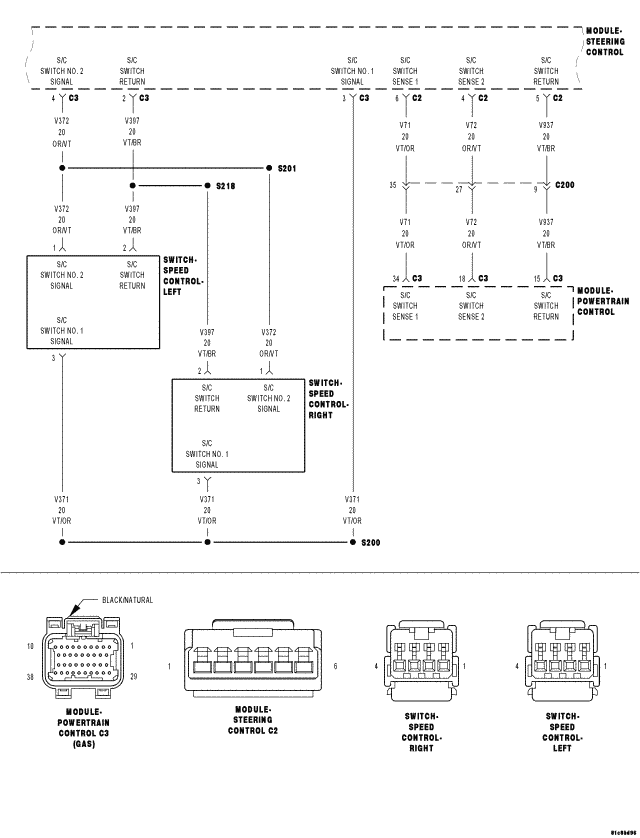

Fig 1: Speed Control Switch Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
