Circuit Schematic

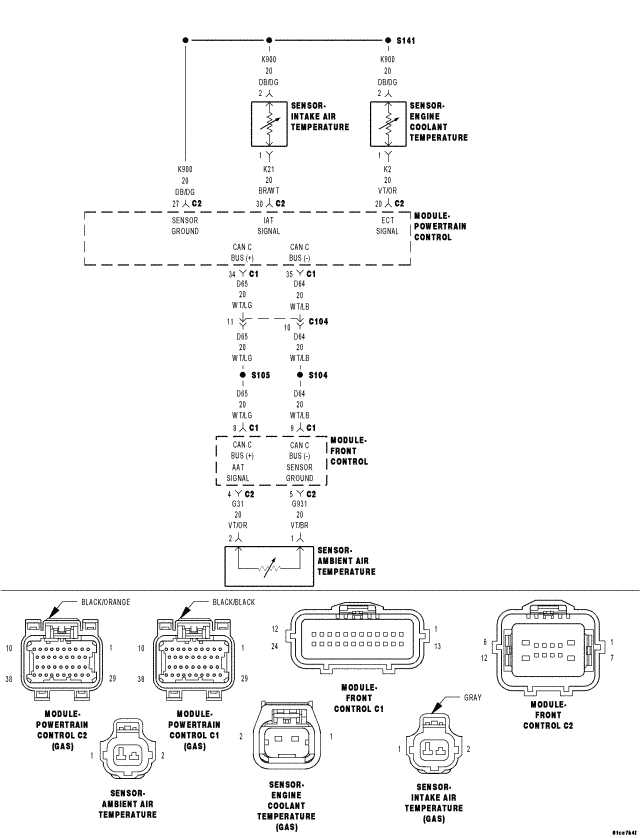

Fig 1: Ambient Air Temperature Sensor Circuit Schematic
GC0071971Courtesy of CHRYSLER LLC
