Heated Glass Element

Component ID: 271
Component : BACKLITE-ELECTRIC HEATED

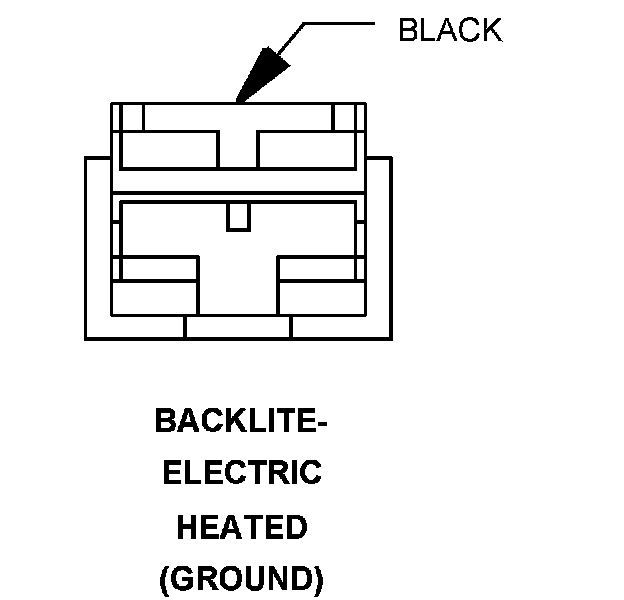

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (GROUND)




Pin Circuit Description
1 Z960 12BK/LB GROUND

Component Location - 62




Component Location - 63

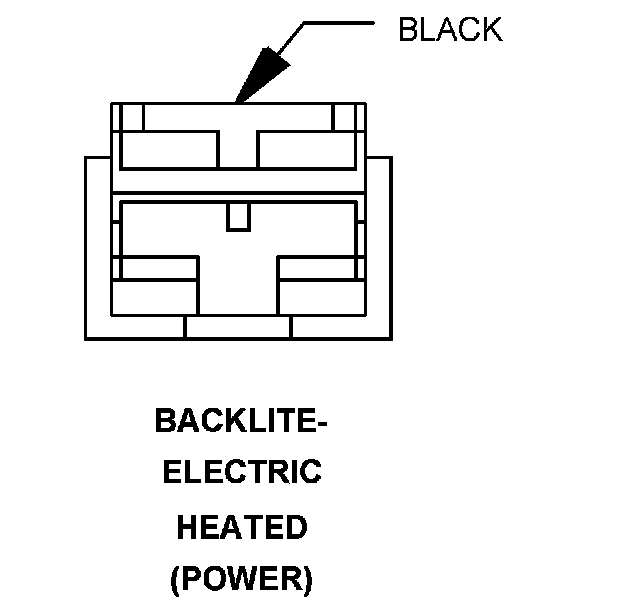

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (POWER)




Pin Circuit Description
1 C515 12LB/OR REAR WINDOW DEFOGGER CONTROL OUTPUT

Component Location - 62




Component Location - 63
