C6 TIPM

Component ID: 356
Component : C6 TIPM

Connector:

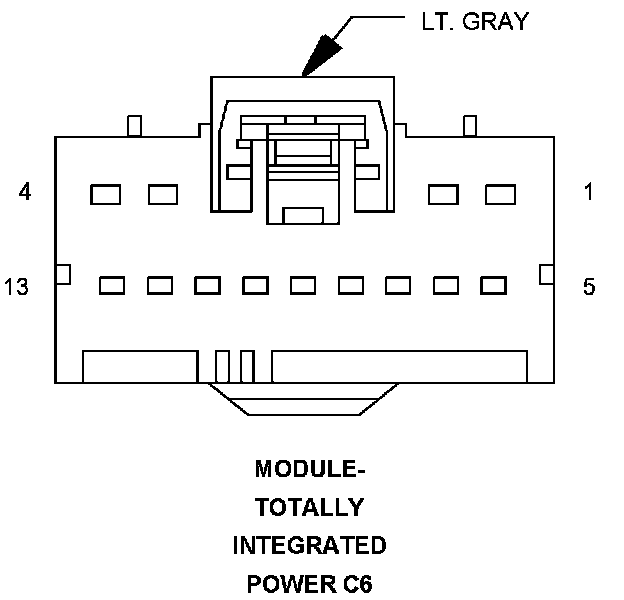

Name : MODULE-TOTALLY INTEGRATED POWER C6
Color : LT. GRAY
# of pins : 13




Pin Circuit Description
1 Z970 16BK GROUND
2 - -
3 - -
4 - -
5 W13 20BR/LG REAR WIPER MOTOR CONTROL
6 - -
7 - -
8 - -
9 - -
10 - -
11 - -
12 L239 20WT/DG REAR FOG LAMP CONTROL OUTPUT
13 - -

Component Location - 9
