Sensor-Camshaft 1/2 Position

Component ID: 132

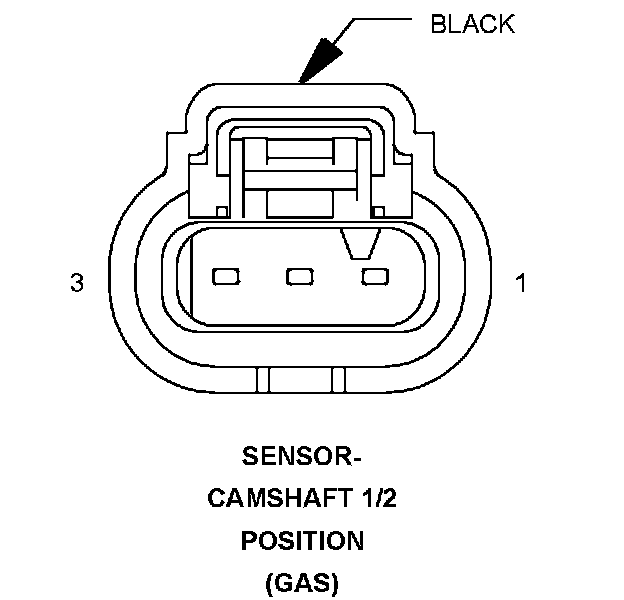

Component : SENSOR-CAMSHAFT 1/2 POSITION

Connector:
Name : SENSOR-CAMSHAFT 1/2 POSITION
Color : BLACK
# of pins : 3
Qualifier : (GAS)




Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
2 K915 20BR/WT SENSOR GROUND
3 K441 20DB/BR CMP 1/2 SIGNAL

Component Location - 16




Component Location - 17
