Sensor-Oxygen 1/2

Component ID: 143

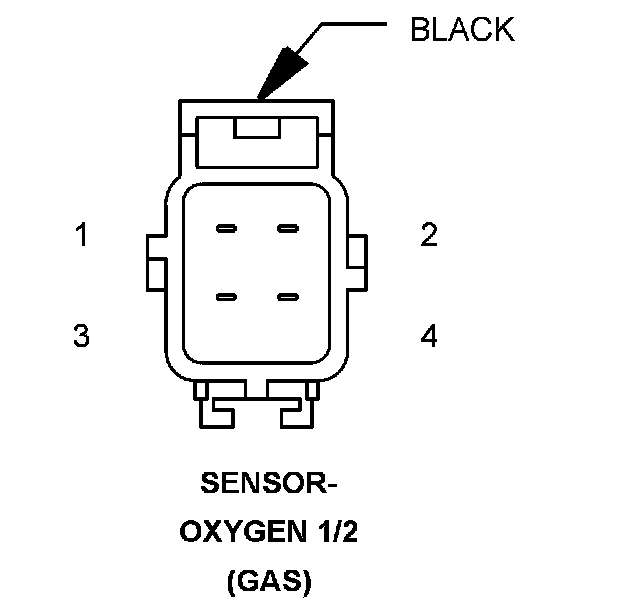

Component : SENSOR-OXYGEN 1/2

Connector:
Name : SENSOR-OXYGEN 1/2
Color : BLACK
# of pins : 4
Qualifier : (GAS)




Pin Circuit Description
1 Z924 20BK/LB GROUND
2 K299 20BR/RD O2 1/2 HEATER CONTROL
3 K904 20DB/DG O2 1/2 RETURN
4 K141 20DB/YL O2 1/2 SIGNAL

Component Location - 8
