Exhaust Manifold
Exhaust Manifold

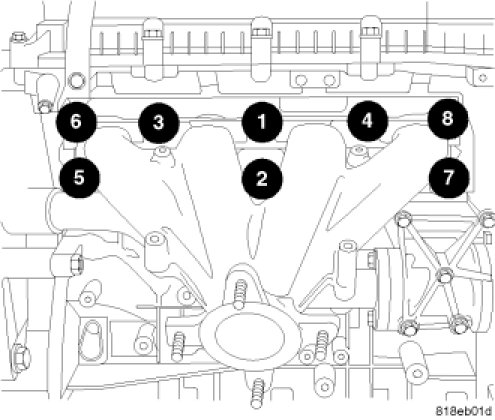

Tighten the
exhaust manifold
bolts to 34 Nm (25 ft. lbs.) in the sequence shown.
