Installation

INSTALLATION

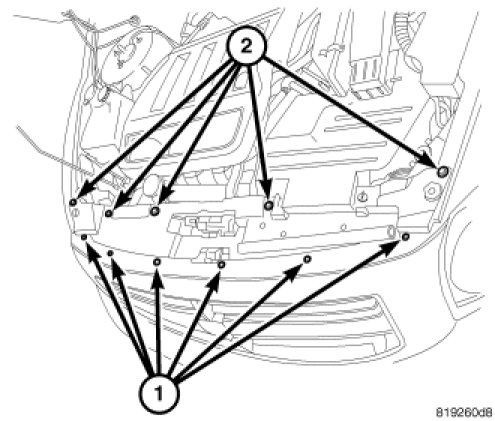

1. Slide closure panel under fascia aligning holes.
2. Tighten fascia fasteners (1).
3. Insert closure panel fasteners (2) and tighten.




4. Insert air cleaner snorkel into airbox opening. Rotate the two retaining clips (3) and fasten into closure panel ensuring fit.
