Removal

REMOVAL





1. Rotate the two retaining clips (3) and remove the air cleaner snorkel (2) from air cleaner box (1).

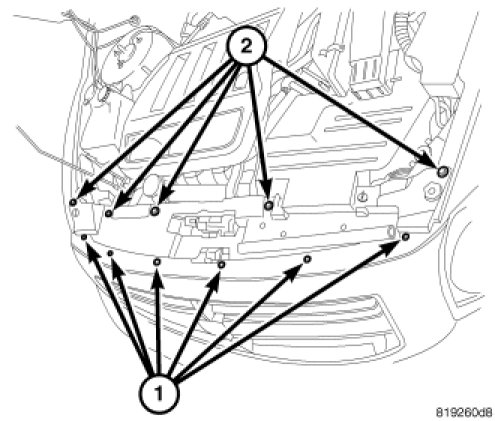

2. Remove fascia fasteners (1).
3. Remove closure panel fasteners (2).
4. Remove closure panel from vehicle.
