Ambient Temperature Sensor / Switch HVAC

Component ID: 224

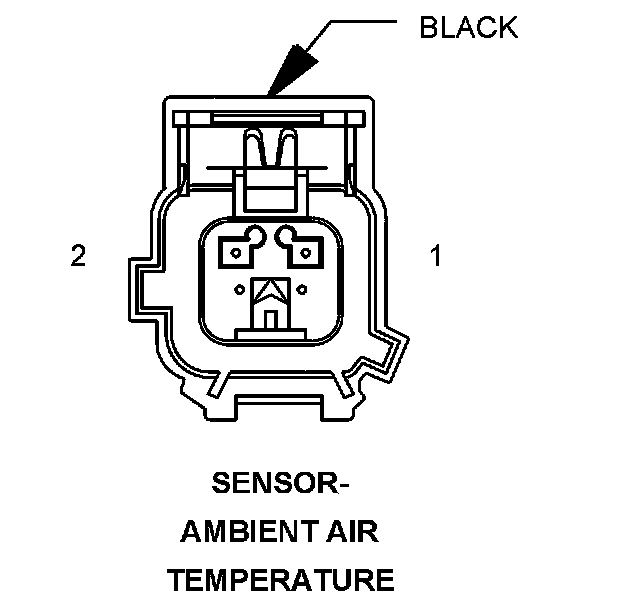

Component : SENSOR-AMBIENT AIR TEMPERATURE

Connector:
Name : SENSOR-AMBIENT AIR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 G31 20VT/LG AAT SIGNAL
2 G931 20VT/DB AAT RETURN

Component Location - 10
