Brake Fluid Level Sensor/Switch

Component ID: 159
Component : SENSOR-BRAKE FLUID LEVEL

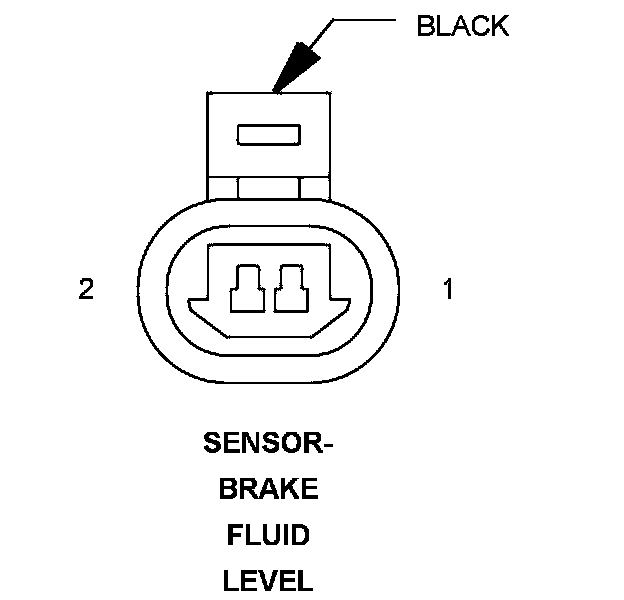

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B20 20DG/RD BRAKE FLUID LEVEL SWITCH SENSE
2 Z925 20BK/YL GROUND

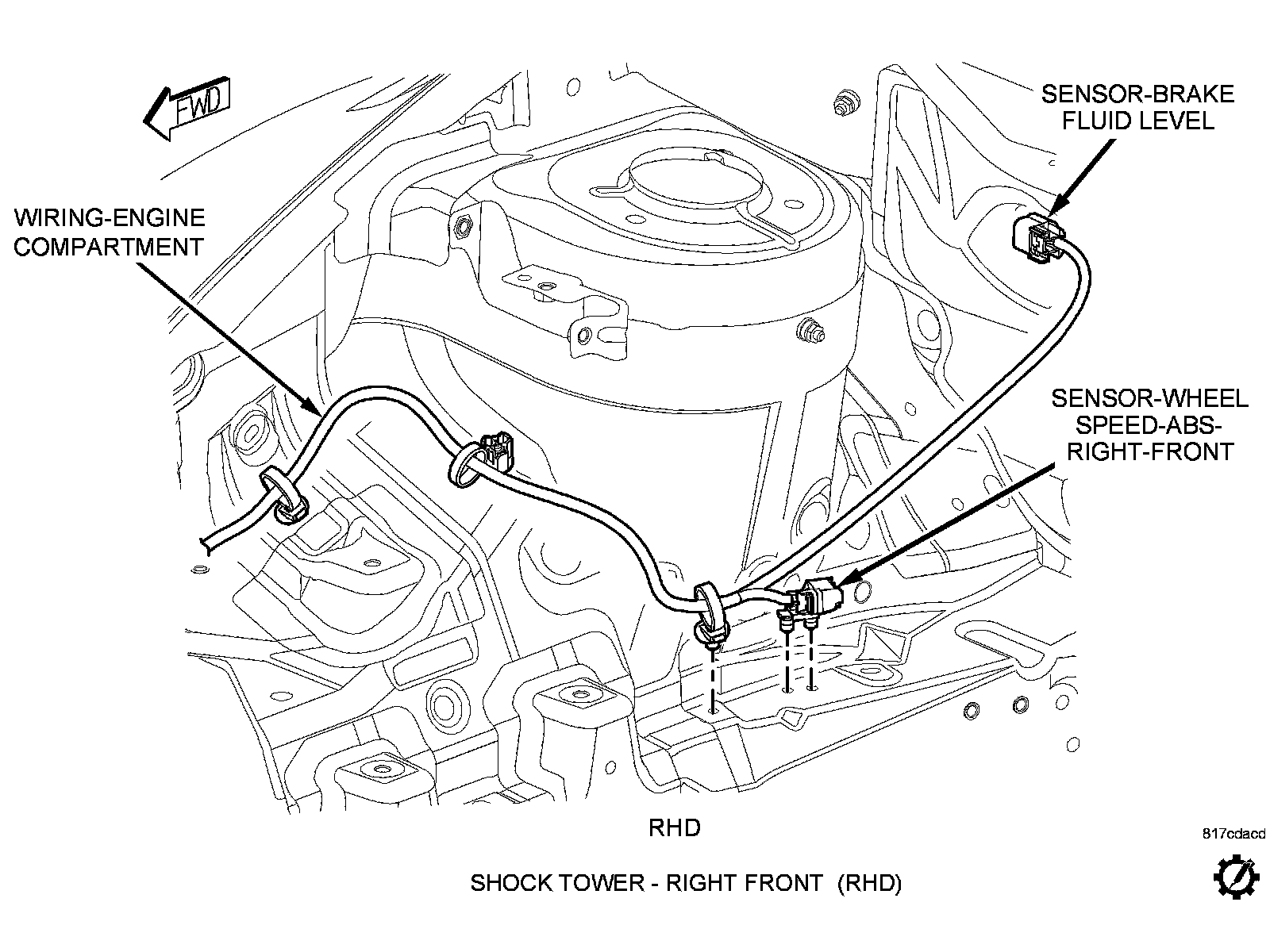

Component Location - 6




Component Location - 8
