Evaporator Temperature Sensor / Switch

Component ID: 226
Component : SENSOR-EVAPORATOR TEMPERATURE

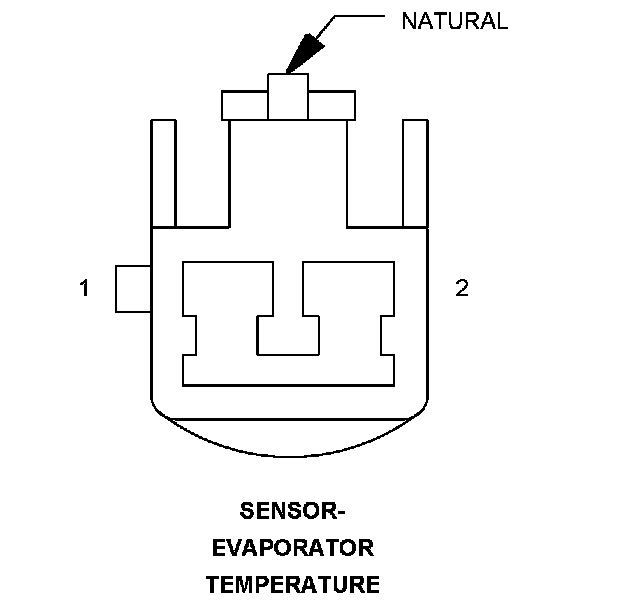

Connector:
Name : SENSOR-EVAPORATOR TEMPERATURE
Color : NATURAL
# of pins : 2




Pin Circuit Description
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND

Component Location - 24




Component Location - 28
