Sensor-Front Impact-Right

Component ID: 234
Component : SENSOR-FRONT IMPACT-RIGHT

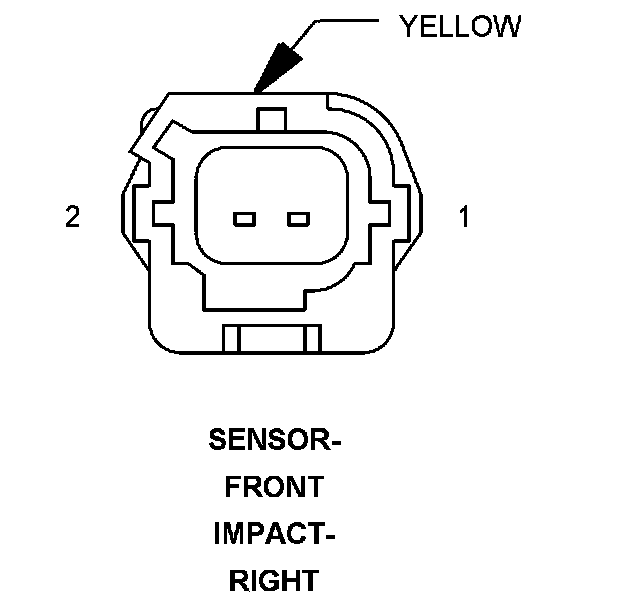

Connector:
Name : SENSOR-FRONT IMPACT-RIGHT
Color : YELLOW
# of pins : 2




Pin Circuit Description
1 R82 20WT/OR RIGHT FRONT IMPACT SENSOR GROUND
2 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL

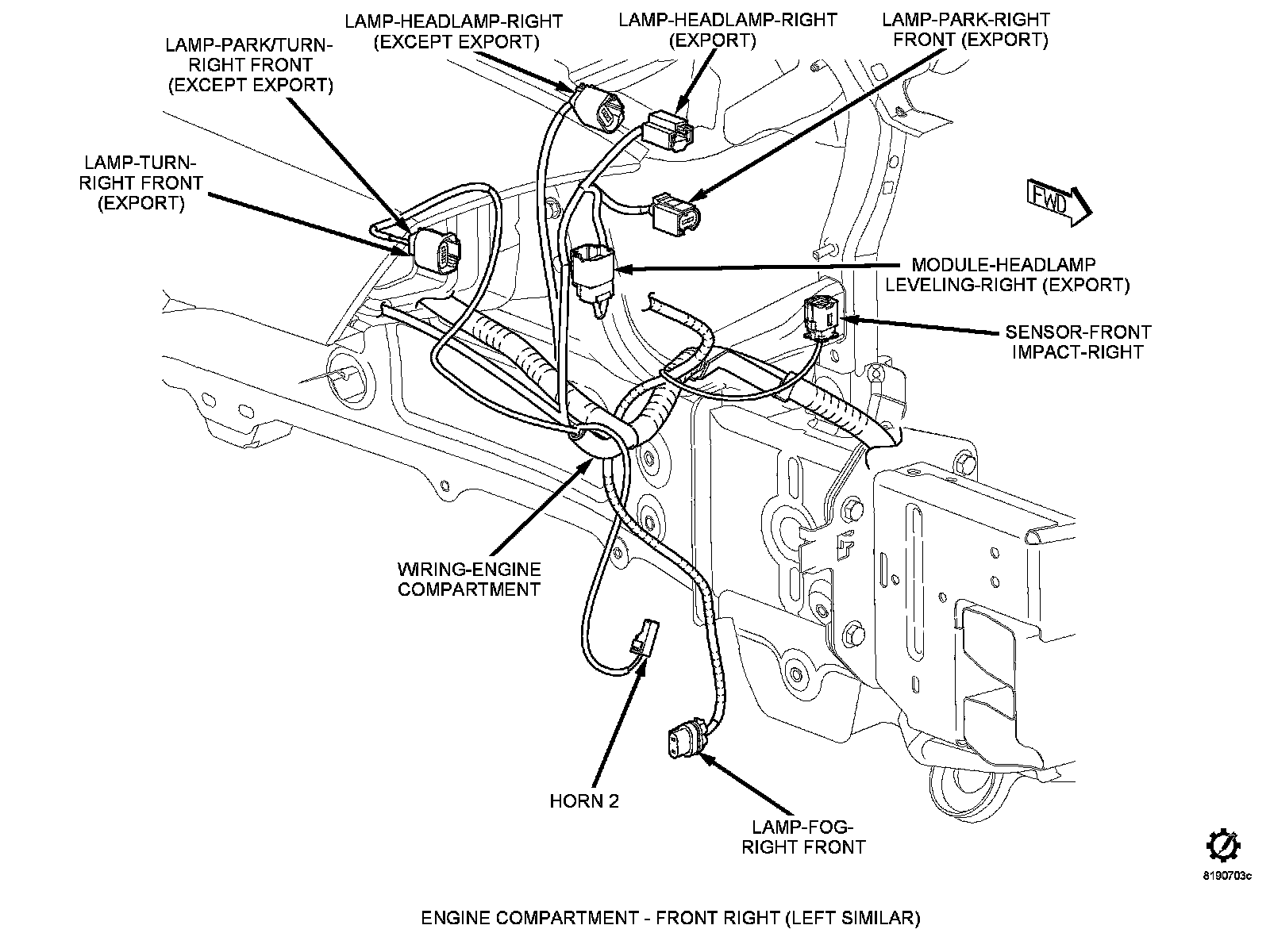

Component Location - 2

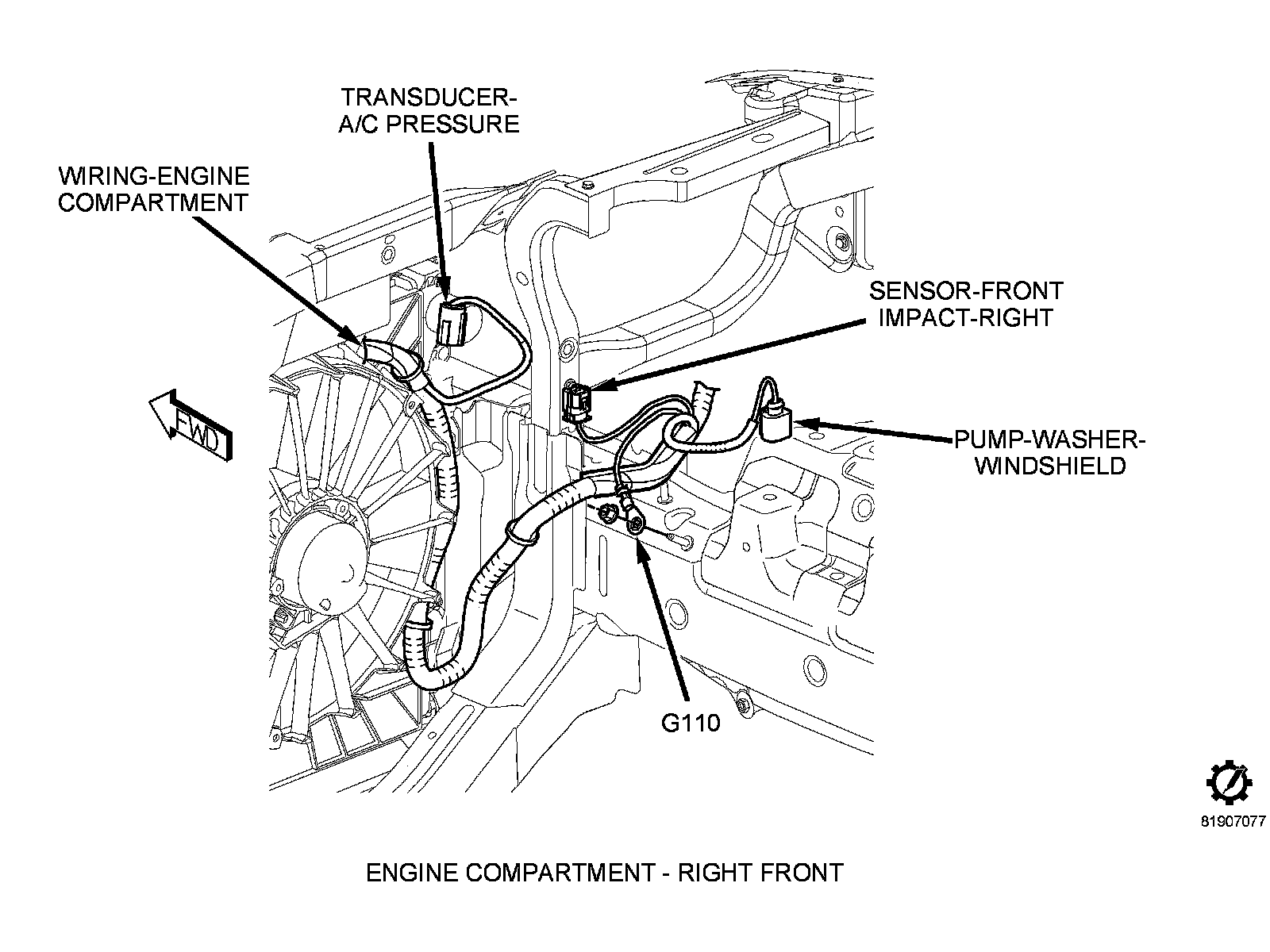

Component Location - 4
