Sensor-Side Impact-Right 1

Component ID: 246
Component : SENSOR-SIDE IMPACT-RIGHT 1

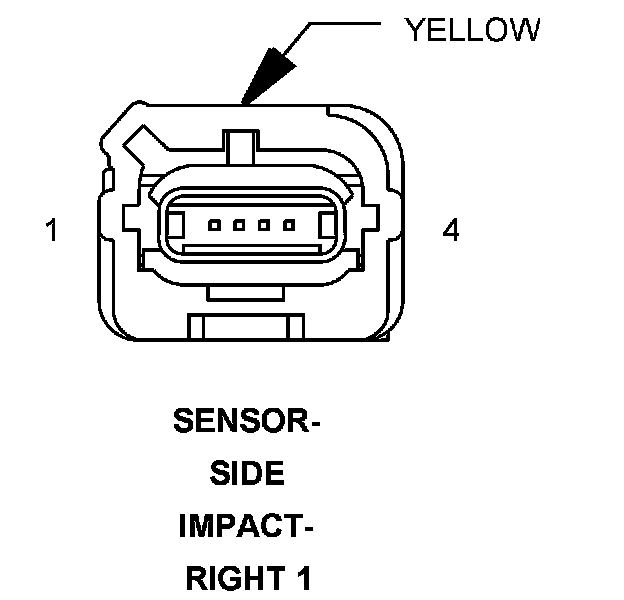

Connector:
Name : SENSOR-SIDE IMPACT-RIGHT 1
Color : YELLOW
# of pins : 4




Pin Circuit Description
1 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL
2 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND
3 R20 20WT/LG RIGHT SIDE IMPACT SENSOR 2 GROUND
4 R18 20LB/LG RIGHT SIDE IMPACT SENSOR 2 SIGNAL

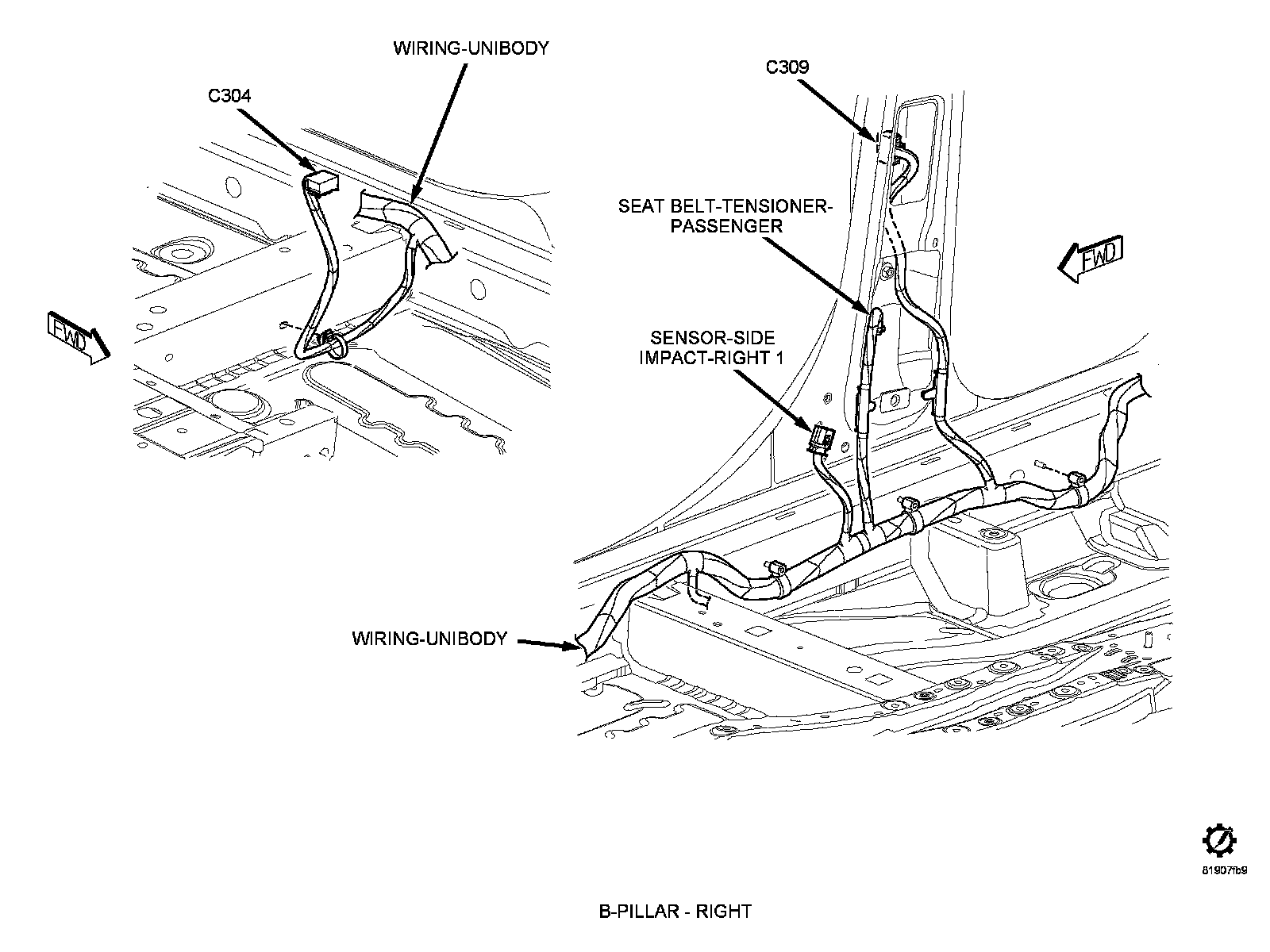

Component Location - 44
