Sensor-Side Impact-Right 2

Component ID: 242
Component : SENSOR-SIDE IMPACT-RIGHT 2

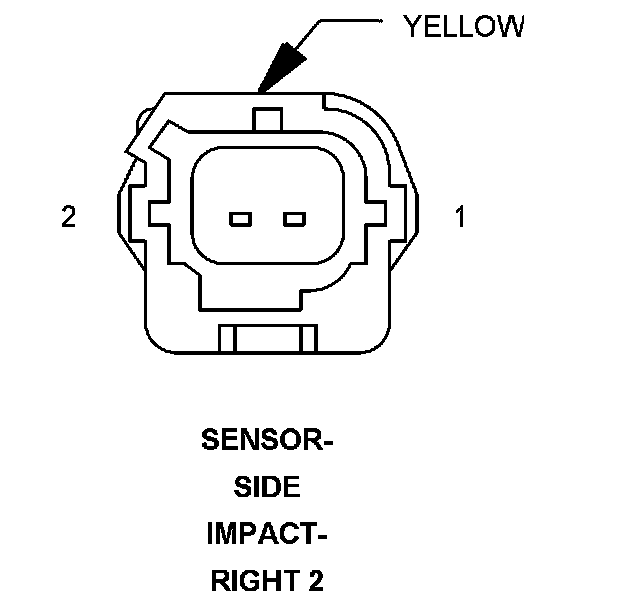

Connector:
Name : SENSOR-SIDE IMPACT-RIGHT 2
Color : YELLOW
# of pins : 2




Pin Circuit Description
1 R20 20WT/LG RIGHT SIDE IMPACT SENSOR 2 GROUND
2 R18 20LB/LG RIGHT SIDE IMPACT SENSOR 2 SIGNAL

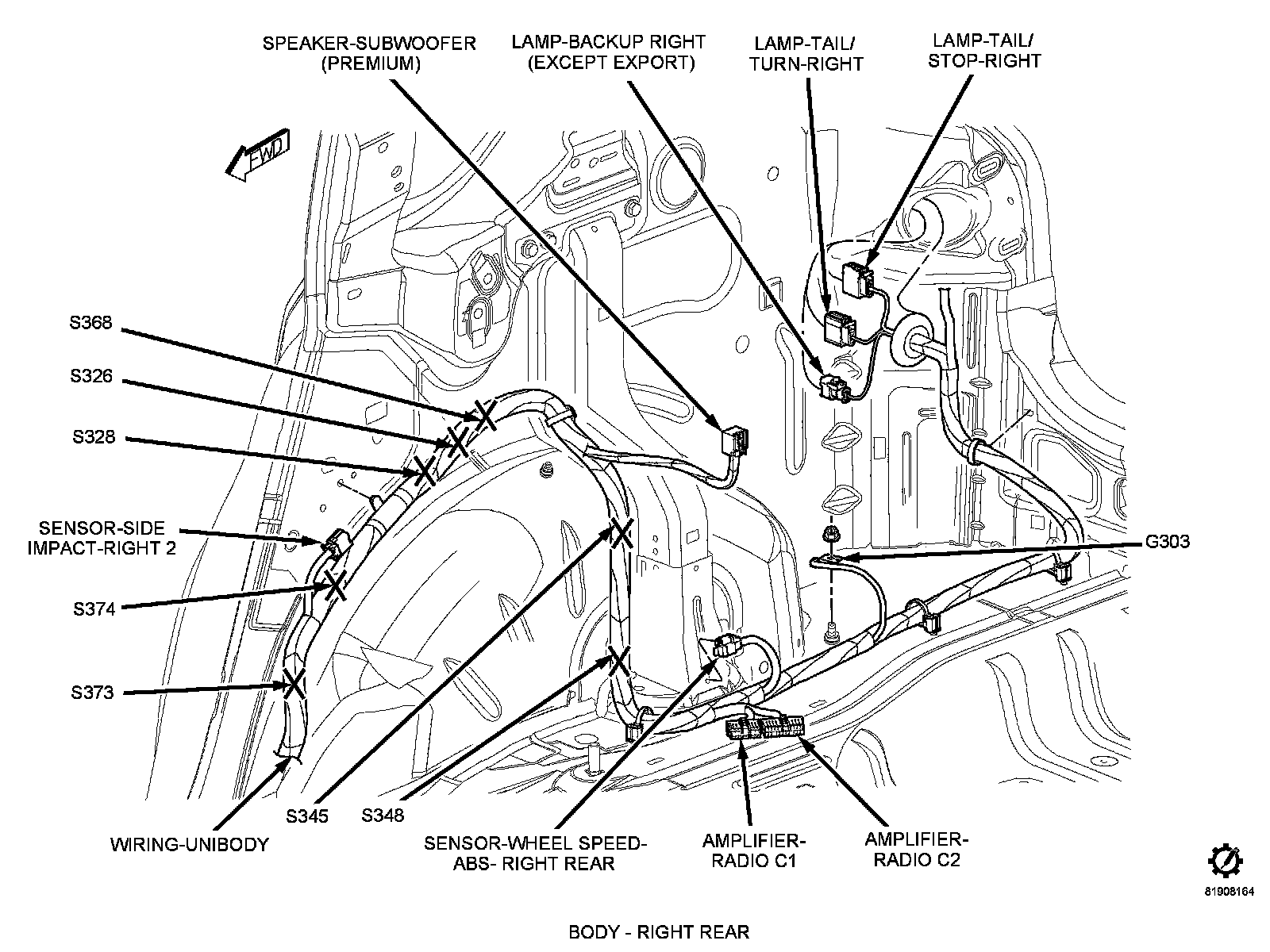

Component Location - 56
