Keyless Entry Module

Component ID: 198
Component : MODULE-SENTRY KEY REMOTE ENTRY/WCM

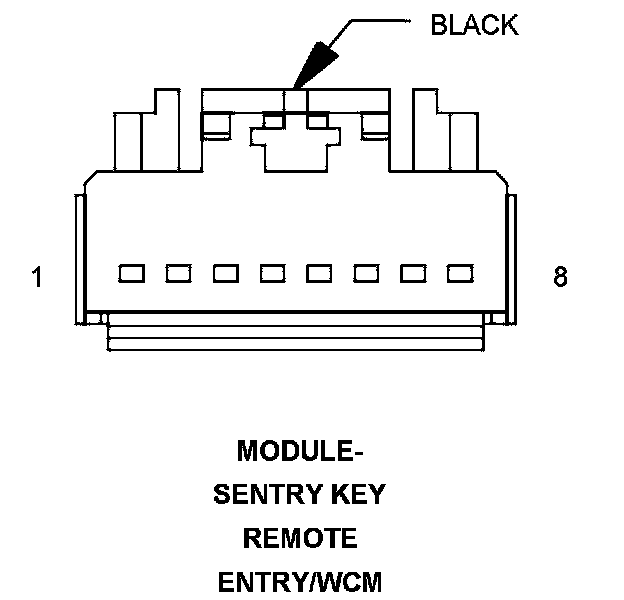

Connector:
Name : MODULE-SENTRY KEY REMOTE ENTRY/WCM
Color : BLACK
# of pins : 8




Pin Circuit Description
1 G20 20VT/BR IGNITION SWITCH SENSE
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
4 Z937 20BK/YL GROUND
5 A411 20RD/LG FUSED B(+) (I.O.D.)
6 D55 20WT/OR CAN B BUS (+)
7 D54 20WT/PK CAN B BUS (-)
8 - -

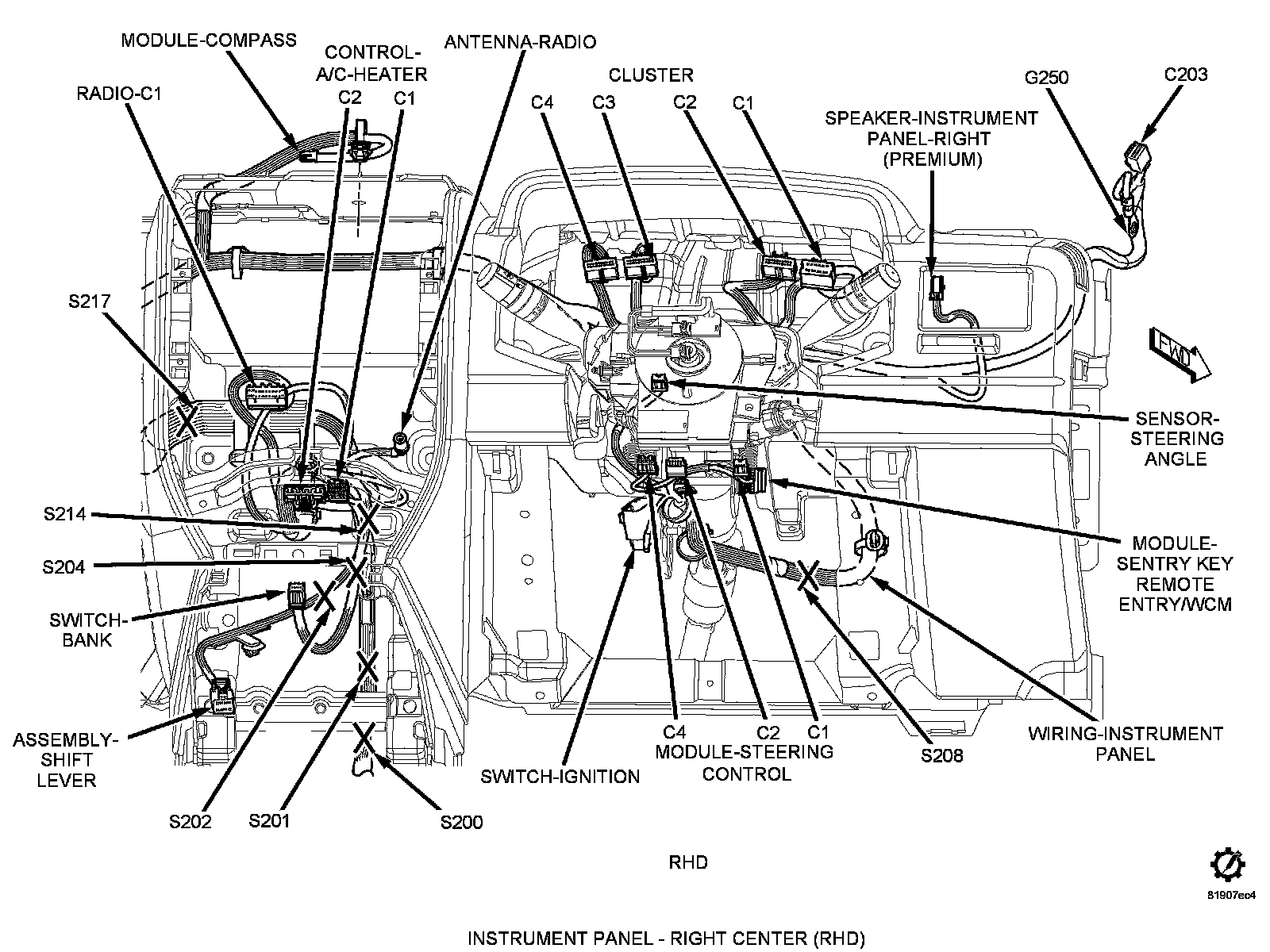

Component Location - 27

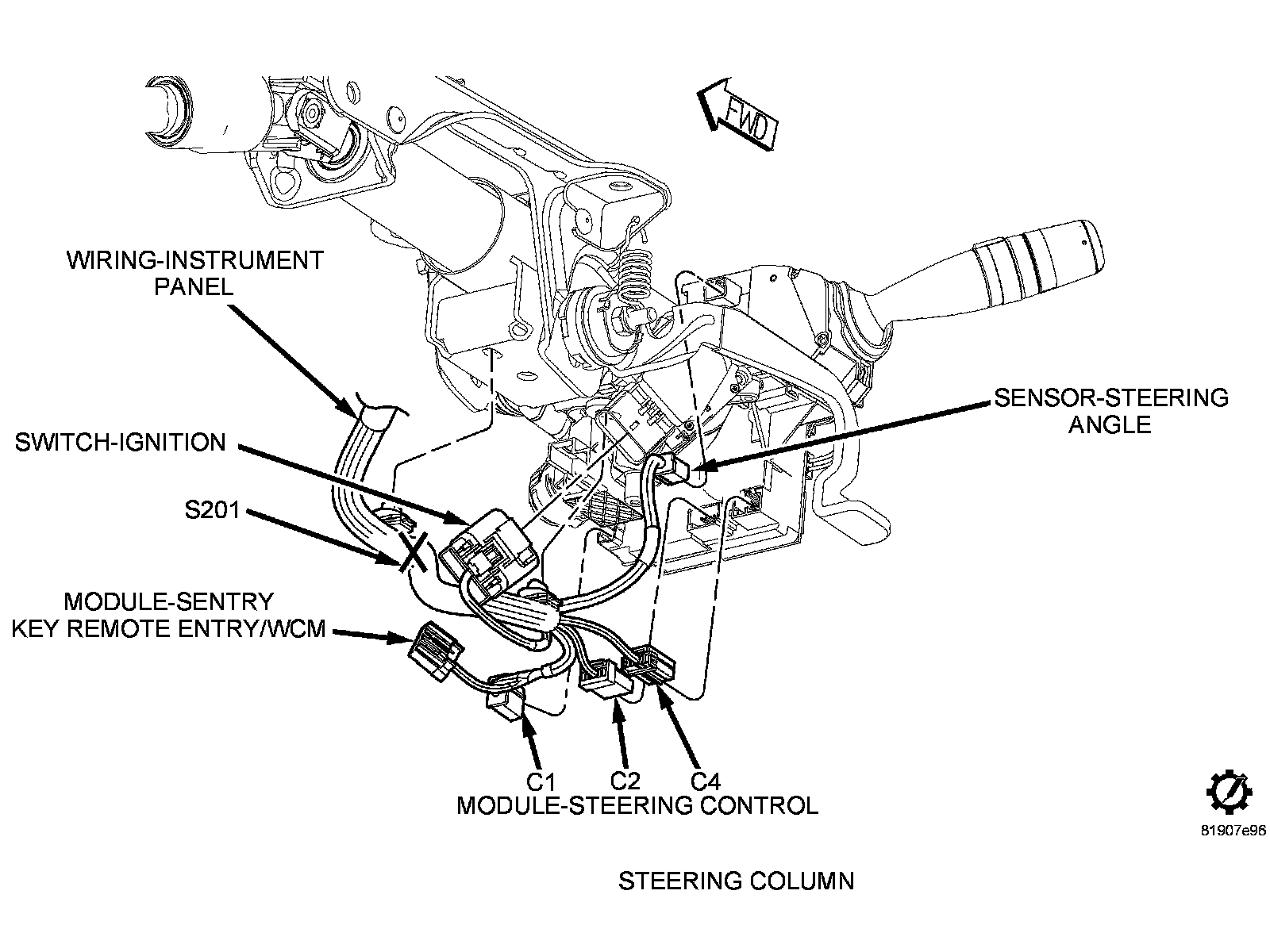

Component Location - 28

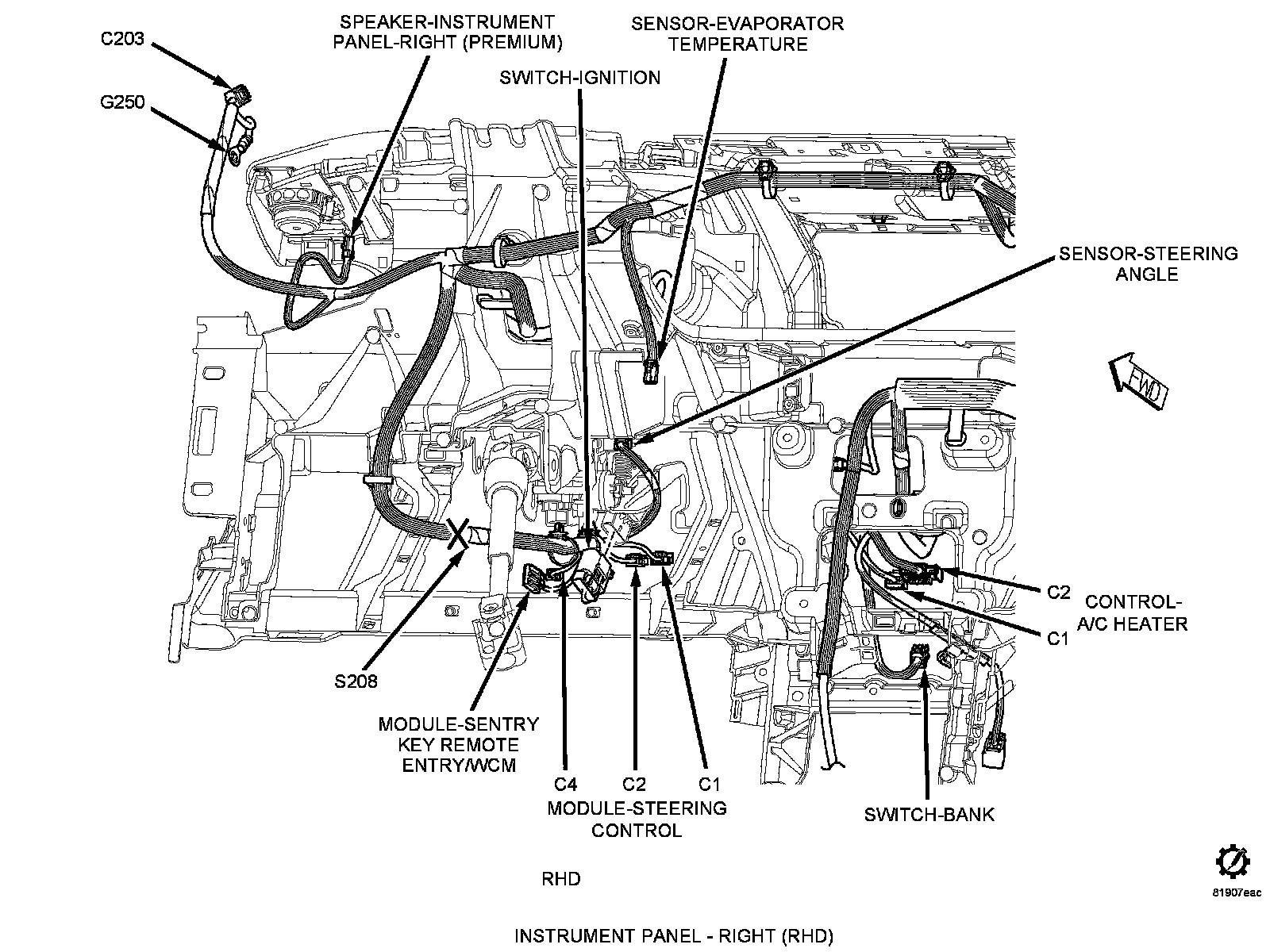

Component Location - 30
