License Plate Lamp

Component ID: 289

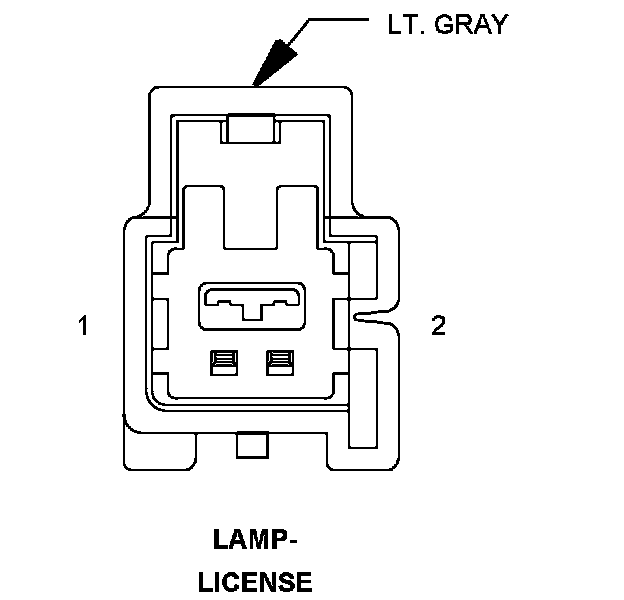

Component : LAMP-LICENSE

Connector:
Name : LAMP-LICENSE
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 Z960 18BK/LB GROUND
2 L217 20WT/VT PARK LAMP CONTROL OUTPUT

Component Location - 62




Component Location - 63
