Oil Temperature Sensor/Switch, Engine

Component ID: 139

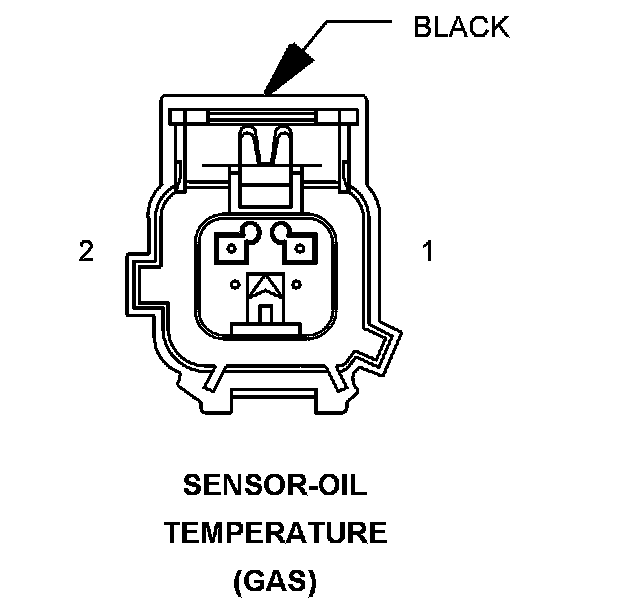

Component : SENSOR-OIL TEMPERATURE

Connector:
Name : SENSOR-OIL TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 G24 20VT/BR EOT SIGNAL
2 K915 20BR/WT SENSOR GROUND

Component Location - 14
