C2 TIPM

Component ID: 81
Component : C2 TIPM

Connector:

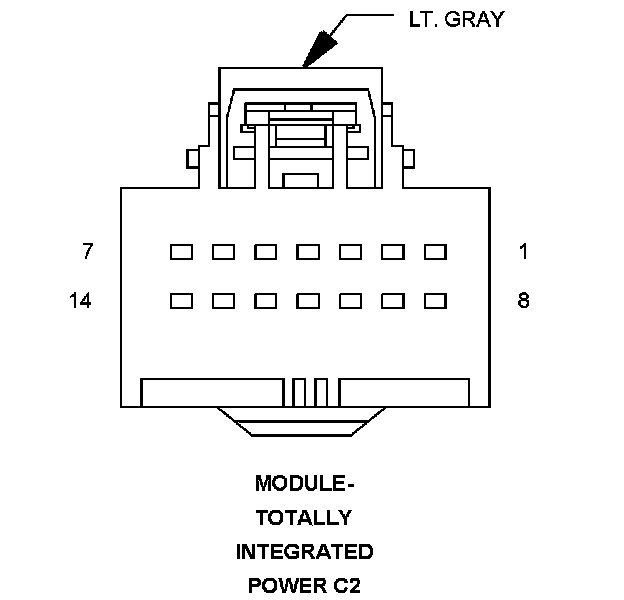

Name : MODULE-TOTALLY INTEGRATED POWER C2
Color : LT. GRAY
# of pins : 14




Pin Circuit Description
1 F901 20PK/RD IGNITION SWITCH OUTPUT (UNLOCK-RUN-START)
2 T752 20DG/OR STARTER CONTROL
3 - -
4 K31 20DB/BK FUEL PUMP CONTROL
4 K31 20BR FUEL PUMP CONTROL
5 W7 20BR/DB FRONT WIPER PARK SWITCH SENSE
6 Z924 20BK/LB GROUND
7 - -
8 - -
9 - -
10 F901 20PK/RD IGNITION SWITCH OUTPUT (UNLOCK-RUN-START)
11 G70 20VT/LB HOOD AJAR SWITCH SENSE
12 - -
13 Z925 20BK/YL GROUND
14 - -

Component Location - 9




Component Location - 8
