C4 TIPM

Component ID: 82
Component : C4 TIPM

Connector:

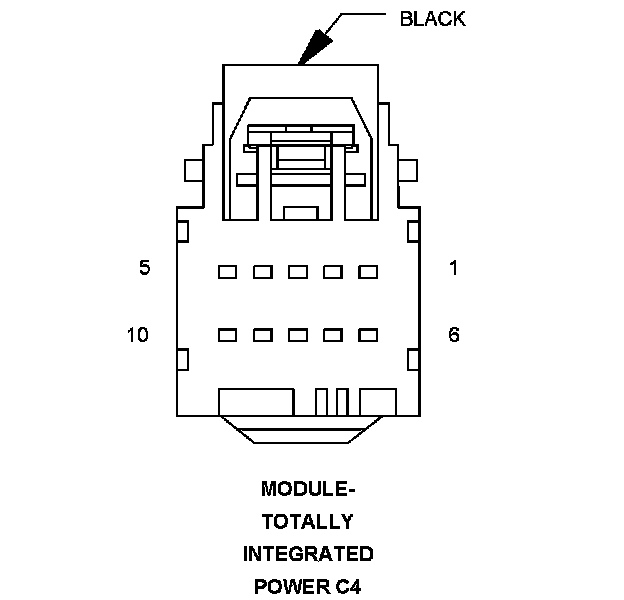

Name : MODULE-TOTALLY INTEGRATED POWER C4
Color : BLACK
# of pins : 10




Pin Circuit Description
1 L61 20WT/LG LEFT TURN SIGNAL
Pin Circuit Description
1 L61 20WT/RD LEFT TURN SIGNAL
2 L60 20WT/TN RIGHT TURN SIGNAL
3 L34 20WT/GY RIGHT HIGH BEAM OUTPUT
4 L43 20WT/DB LEFT LOW BEAM OUTPUT
5 - -
6 - -
7 - -
8 G31 20VT/LG AAT SIGNAL
9 G931 20VT/DB AAT RETURN
10 - -

Component Location - 9




Component Location - 8
