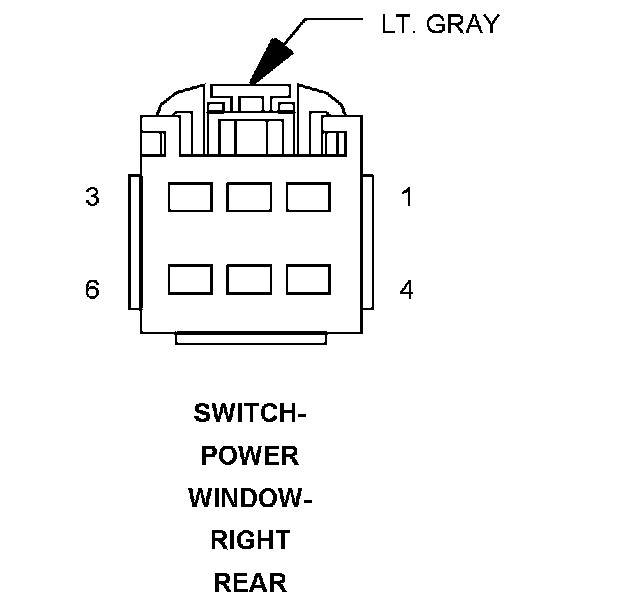

Switch-Power Window-Right Rear

Component ID: 311
Component : SWITCH-POWER WINDOW-RIGHT REAR

Connector:
Name : SWITCH-POWER WINDOW-RIGHT REAR
Color : LT. GRAY
# of pins : 6




Pin Circuit Description
1 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
2 Q212 14OR/VT RIGHT REAR WINDOW DRIVER (DOWN)
3 Q112 14OR/BR RIGHT REAR WINDOW DRIVER (UP)
4 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
5 - -
6 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT

Component Location - 49
