Sensor-Wheel Speed-ABS-Left Rear

Component ID: 196
Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

Connector:

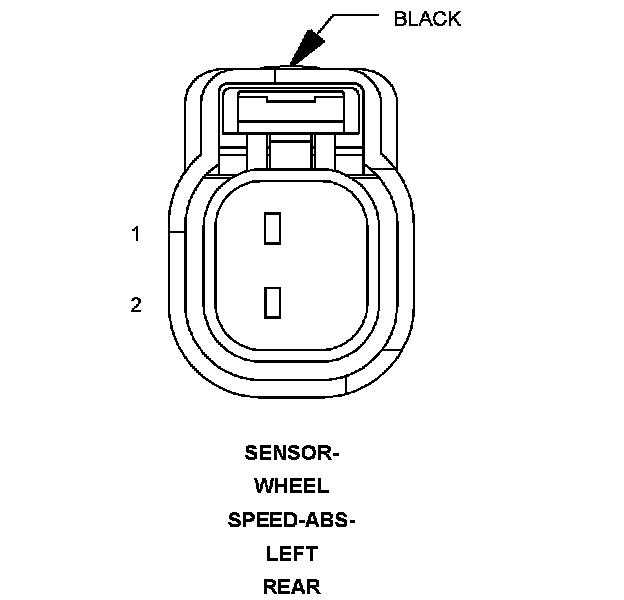

Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B4 20LG/BK LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B3 20LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL

Component Location - 53





Connector:

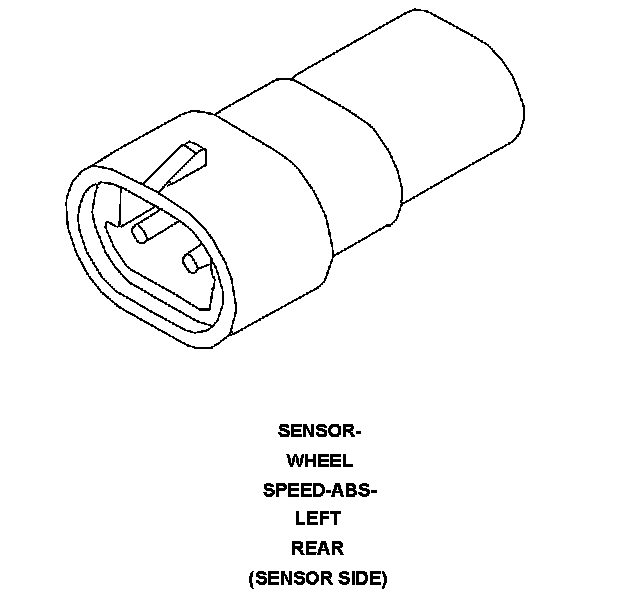

Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color :
# of pins : 2
Qualifier : (SENSOR SIDE)




Pin Circuit Description
1 LG LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL

Component Location - 53
