Sensor-Wheel Speed-ABS-Right Front

Component ID: 195
Component : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT

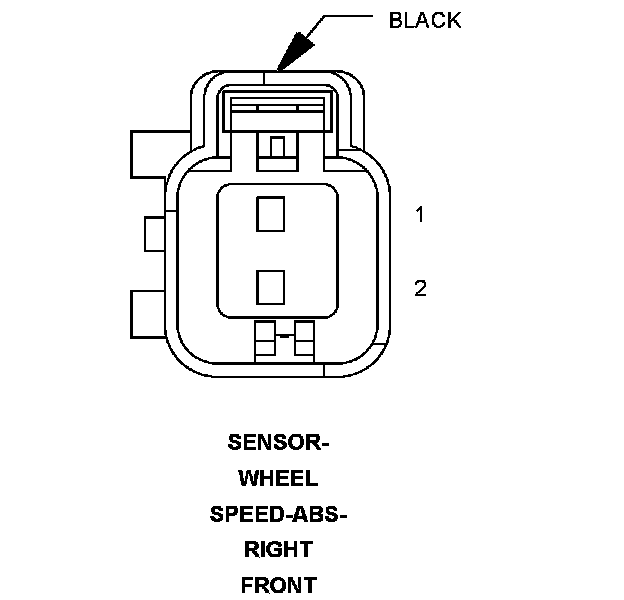

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

Component Location - 5




Component Location - 6





Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color :
# of pins : 2
Qualifier : (SENSOR SIDE)




Pin Circuit Description
1 WT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

Component Location - 5




Component Location - 6
