Cruise Control

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

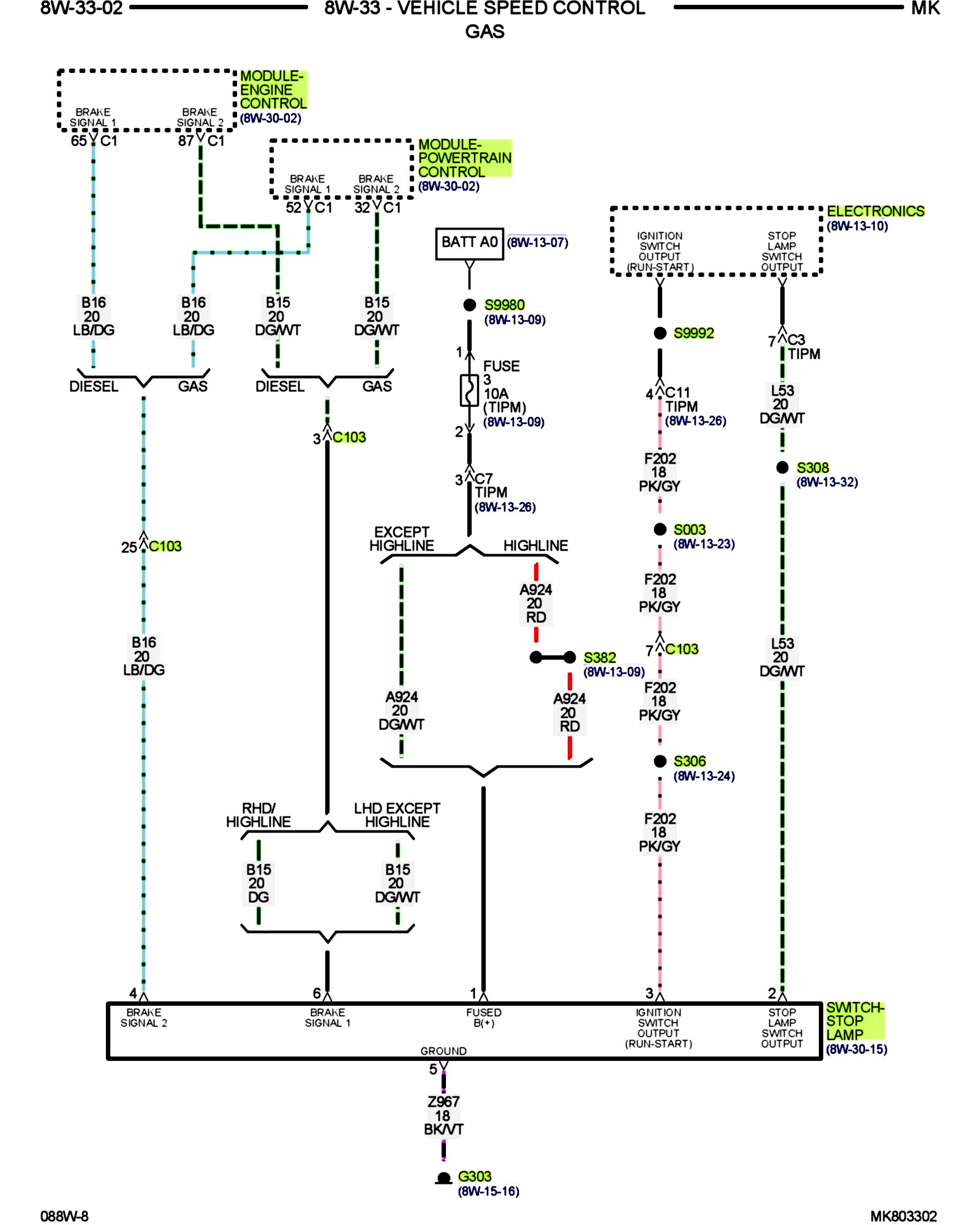

8w-33-02 (Gas):

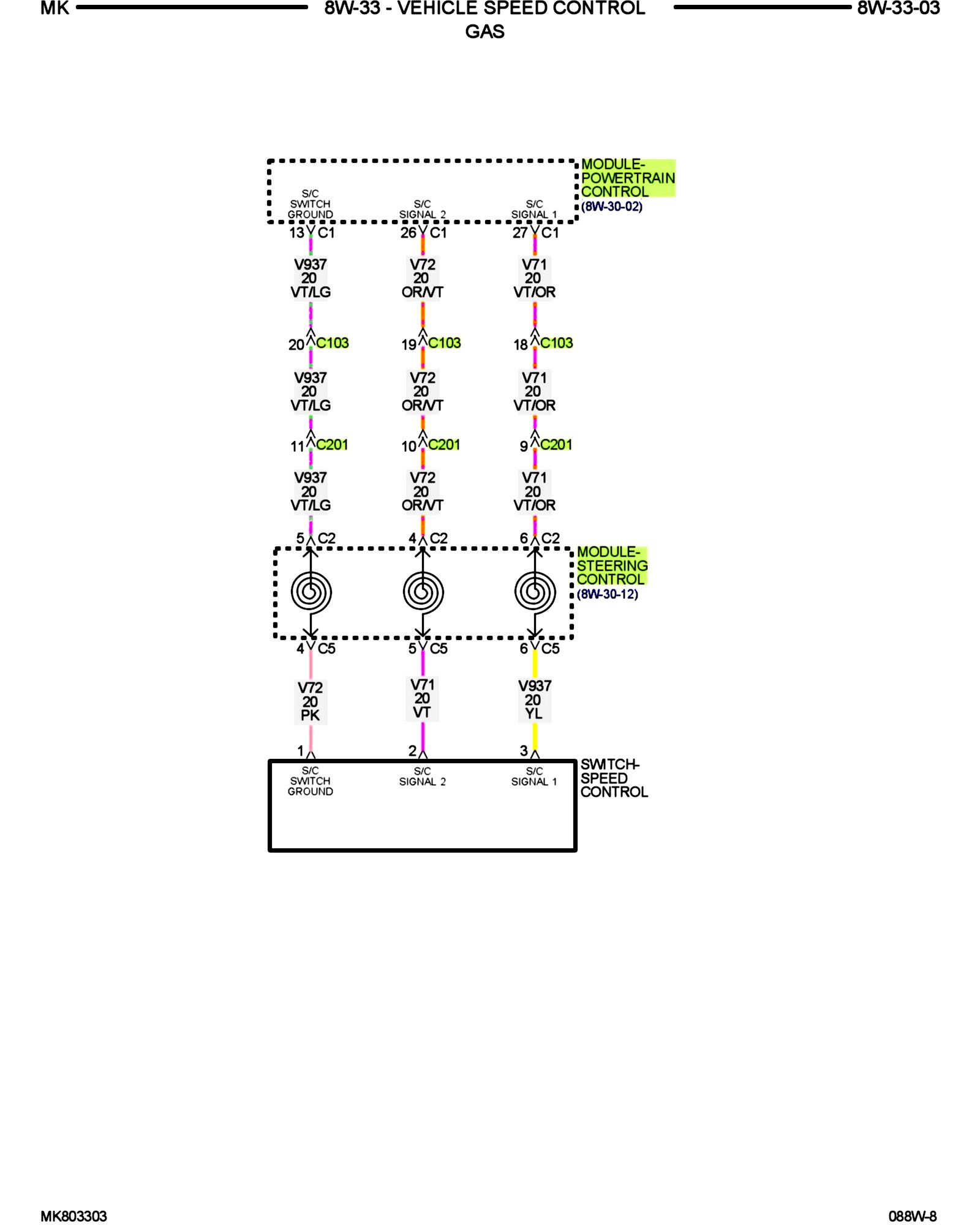

8w-33-03 (Gas):

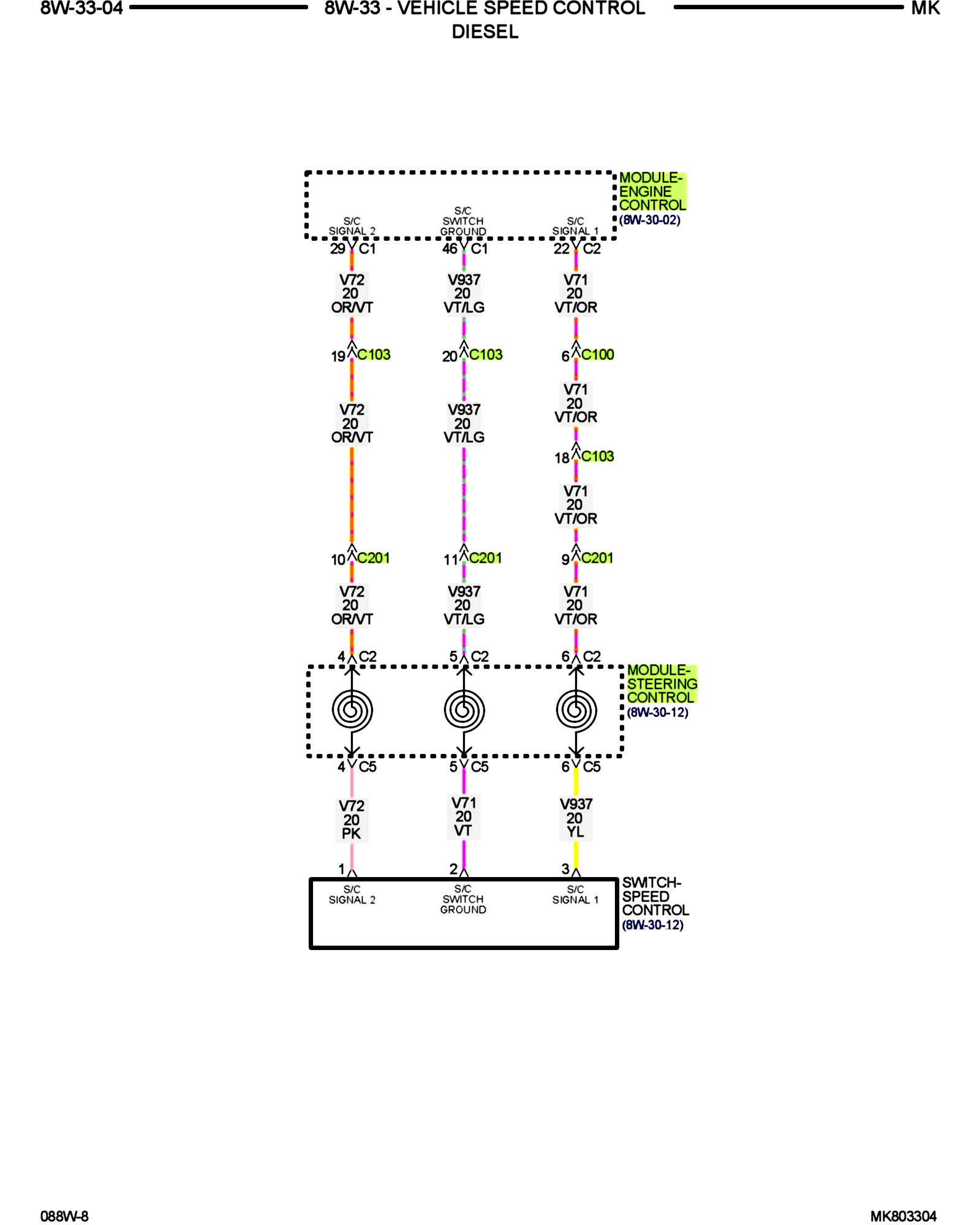

8w-33-04 (Diesel):

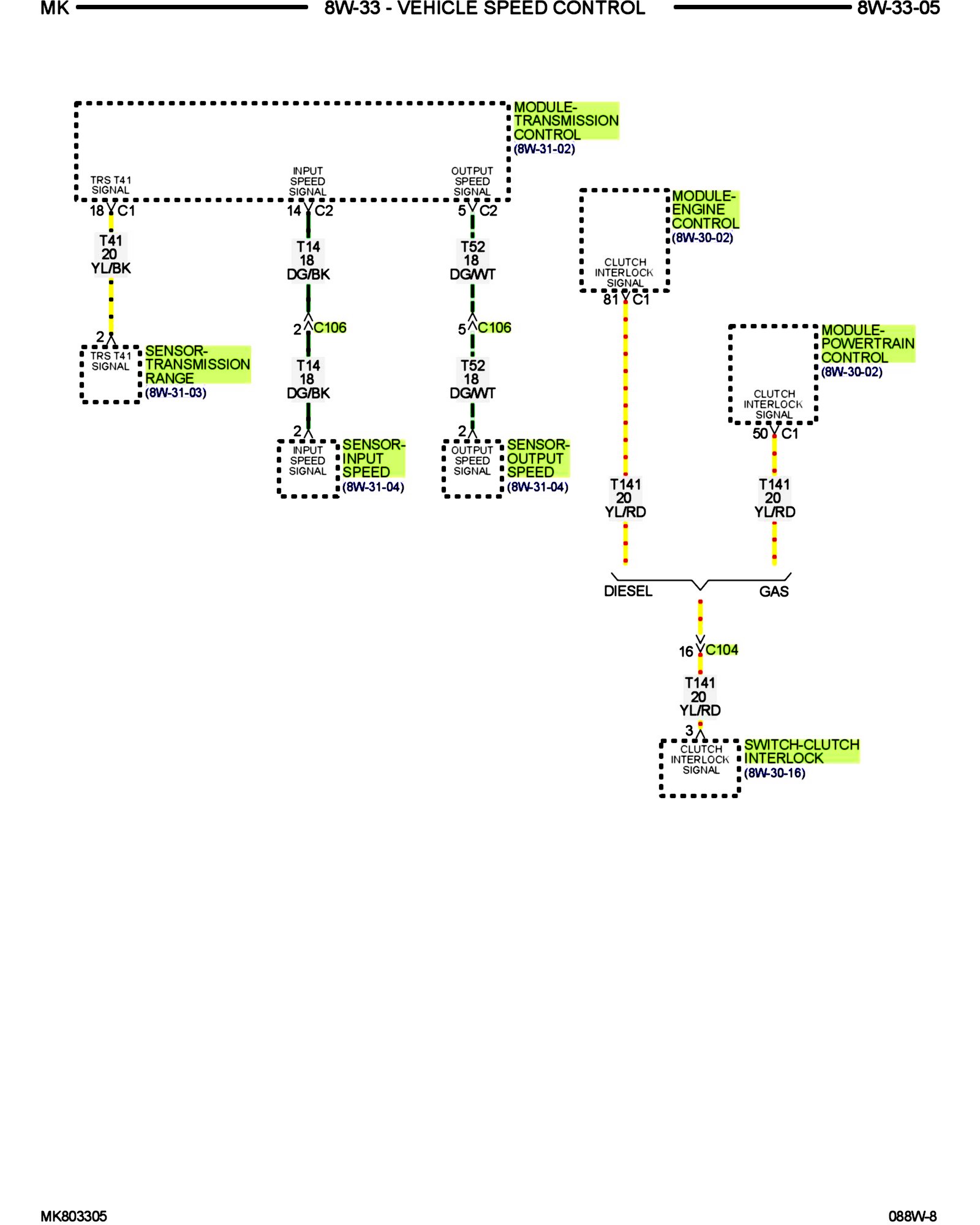

8w-33-05:

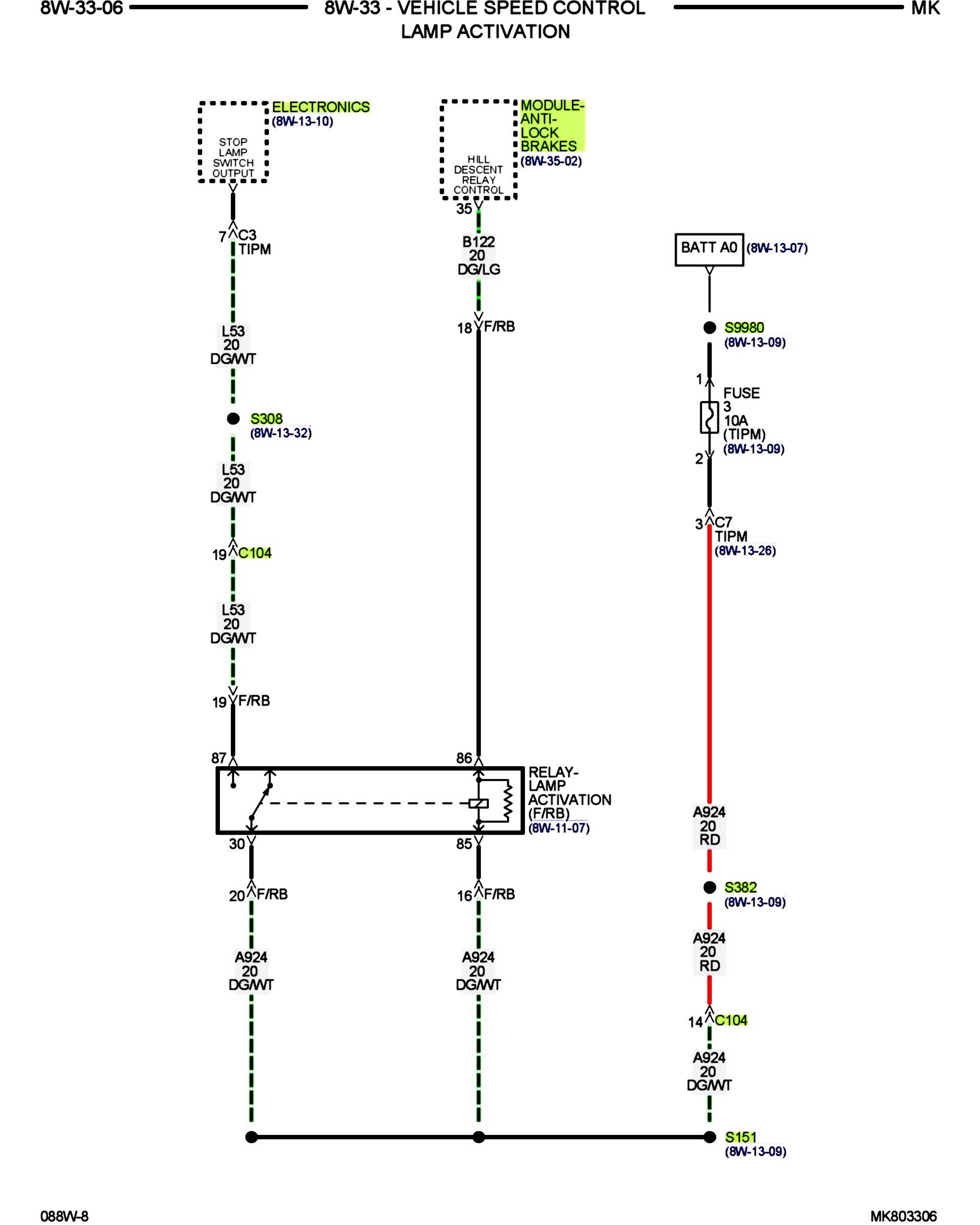

8w-33-06:

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
