Installation







INSTALLATION

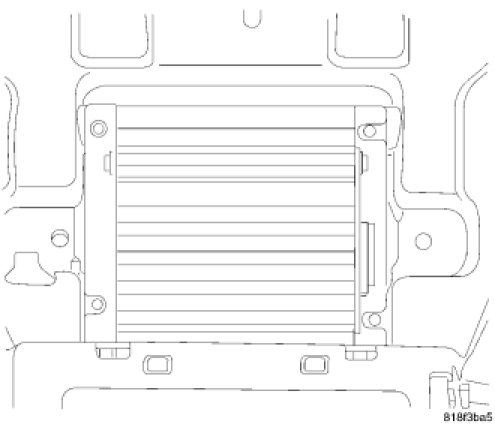

1. Connect the electrical connectors to the inverter module.
2. Install the fasteners to the mounting brackets.
3. Install the center bezel to the instrument panel. Instrument Panel Center Bezel - Installation.
4. Install the shift bezel. Console Shifter Bezel - Installation.
5. Connect the battery negative cable.
