Crankshaft Position Sensor: Locations

Component ID: 131
Component : SENSOR-CRANKSHAFT POSITION

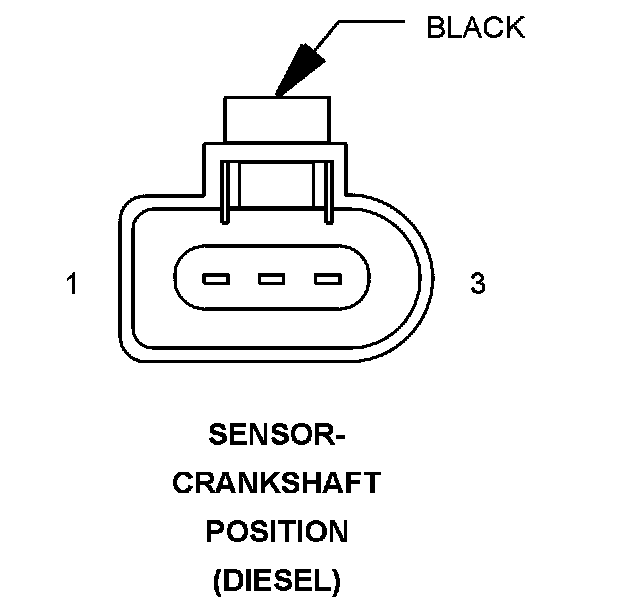

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 K853 20DB/BR CKP SENSOR 5 VOLT SUPPLY
2 K24 20BR/DB CKP SENSOR SIGNAL
3 K925 20DB/GY CKP SENSOR GROUND

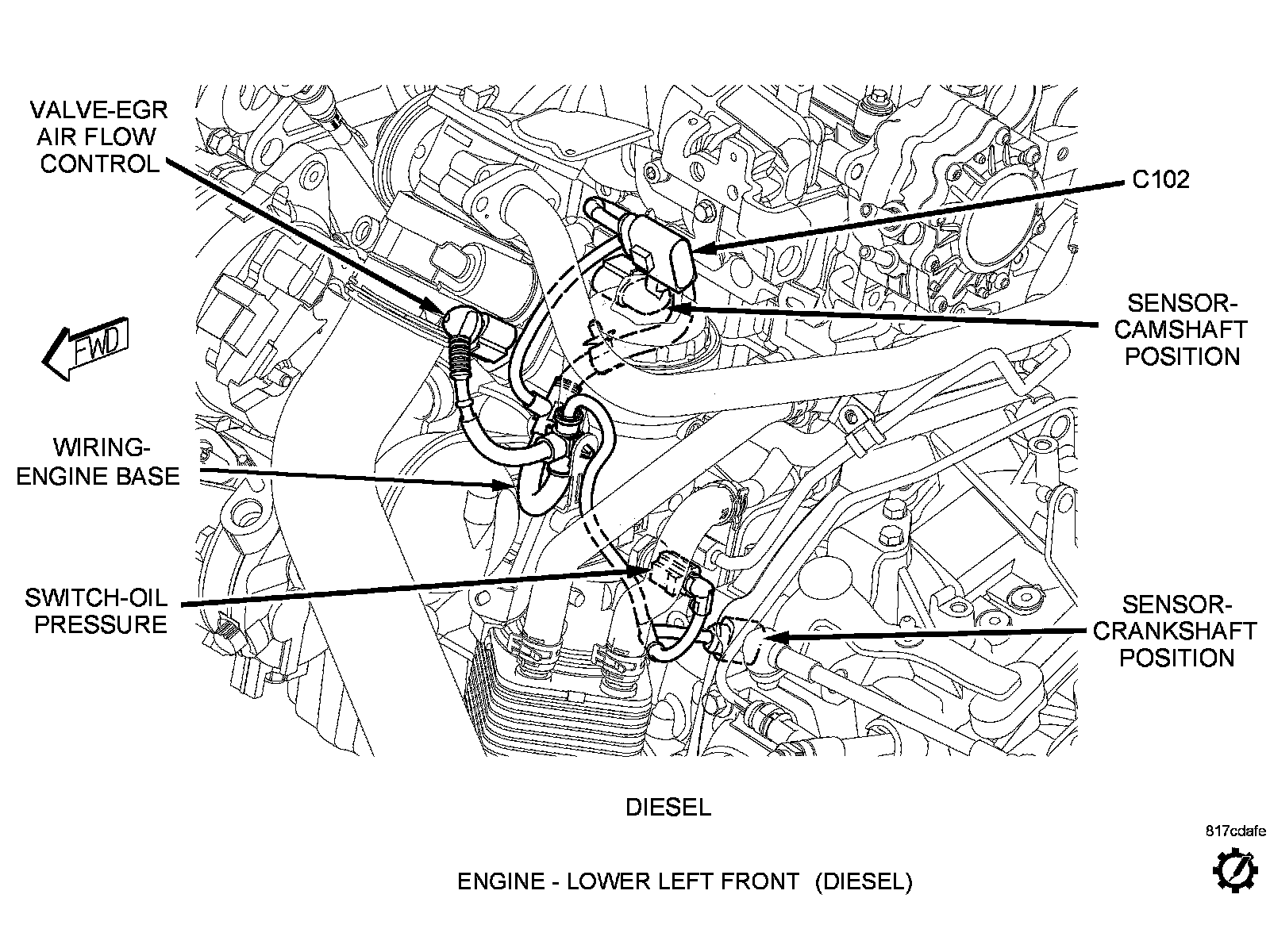

Component Location - 16




Component Location - 20




Component Location - 17

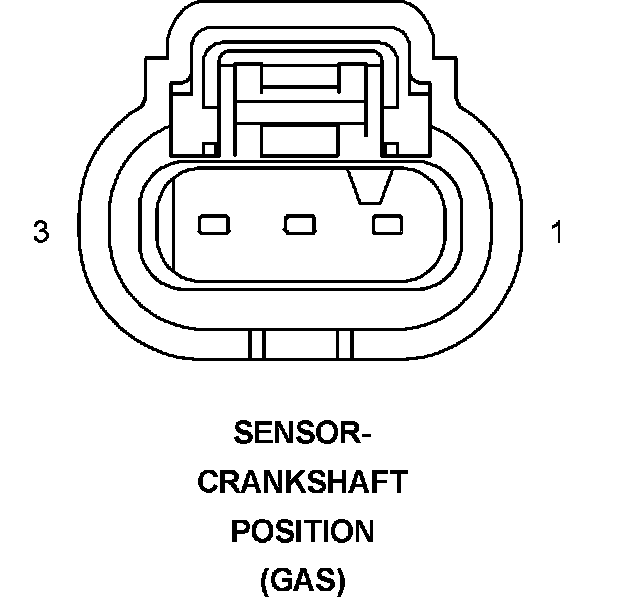

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color :
# of pins : 3
Qualifier : (GAS)




Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K24 20LB/BR CKP SIGNAL

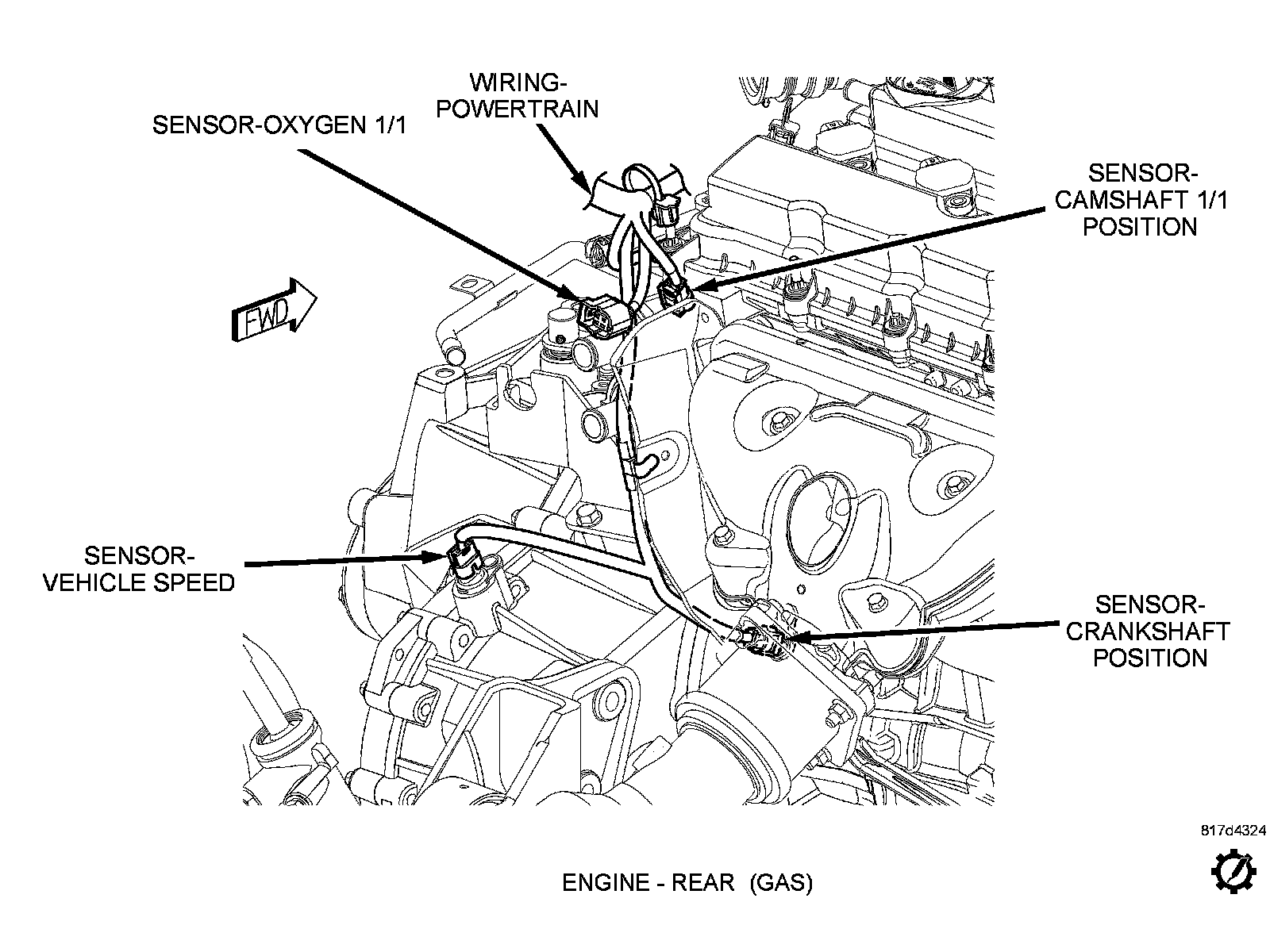

Component Location - 16




Component Location - 20




Component Location - 17
