Removal

REMOVAL

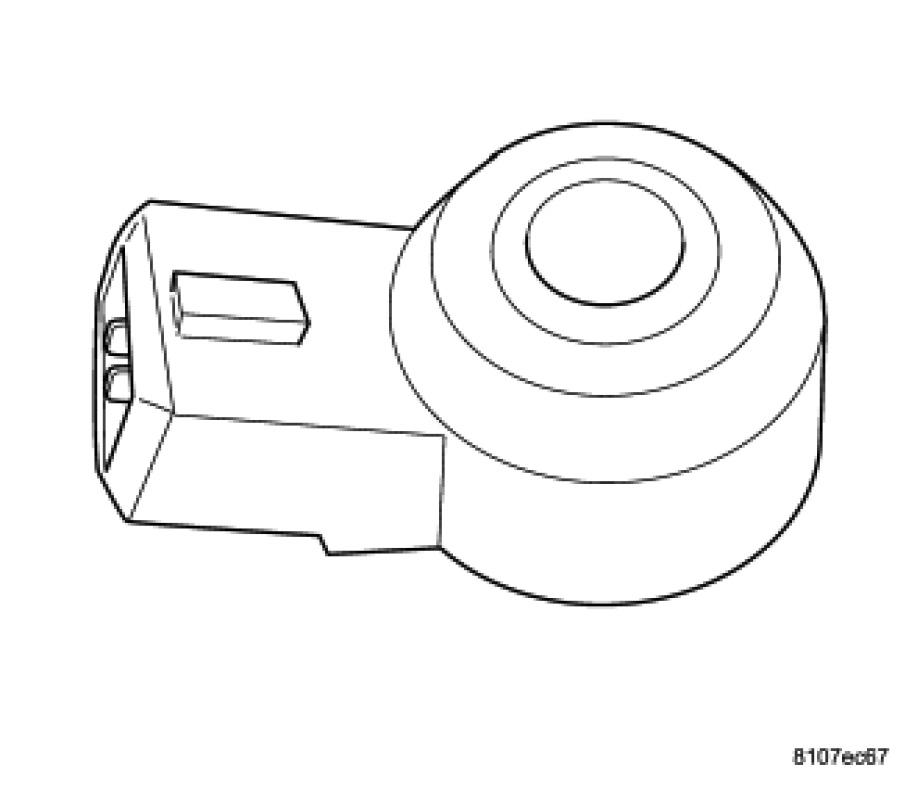

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

1. Disconnect the negative battery cable.




2. Remove the bolt holding the knock sensor.
3. Remove sensor with electrical connector attached.
4. Disconnect electrical connector from knock sensor.




5. Remove the knock sensor.
