Sensor-Camshaft 1/1 Position

Component ID: 134

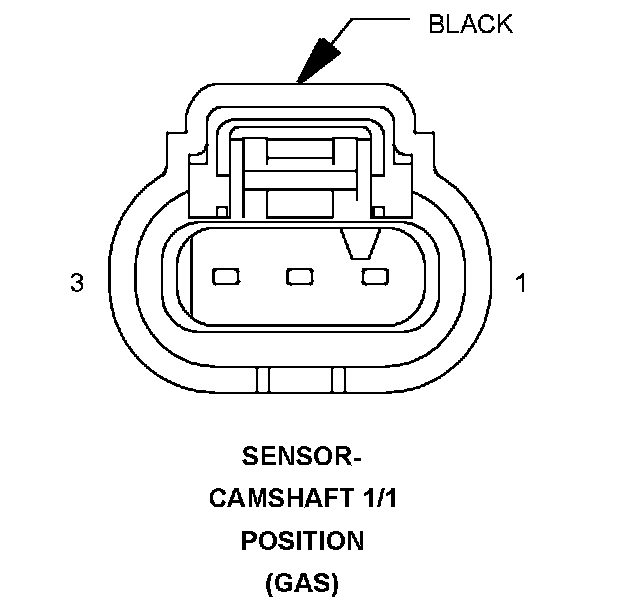

Component : SENSOR-CAMSHAFT 1/1 POSITION

Connector:
Name : SENSOR-CAMSHAFT 1/1 POSITION
Color : BLACK
# of pins : 3
Qualifier : (GAS)




Pin Circuit Description
1 K857 20BR/LG 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K44 20DB CMP 1/1 SIGNAL

Component Location - 14
