Neutral Safety Switch: Locations

Component ID: 158
Component : SWITCH-CLUTCH INTERLOCK

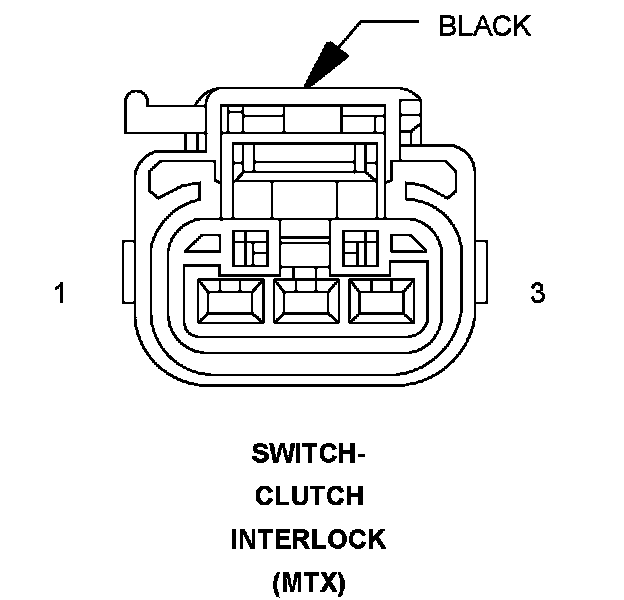

Connector:
Name : SWITCH-CLUTCH INTERLOCK
Color : BLACK
# of pins : 3
Qualifier : (MTX)




Pin Circuit Description
1 T26 20DG/OR CLUTCH UPSTOP SWITCH SIGNAL
2 Z925 20BK/OR GROUND
2 Z961 20BK/YL GROUND
3 T141 20YL/RD CLUTCH INTERLOCK SIGNAL

Component Location - 38




Component Location - 41
