Transmission Control Module - Removal

REMOVAL

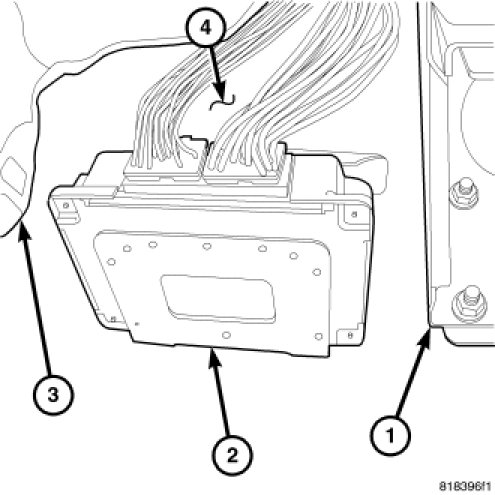

1. The TCM (2) is located between the brake pedal bracket (1) and the left kick panel (3).

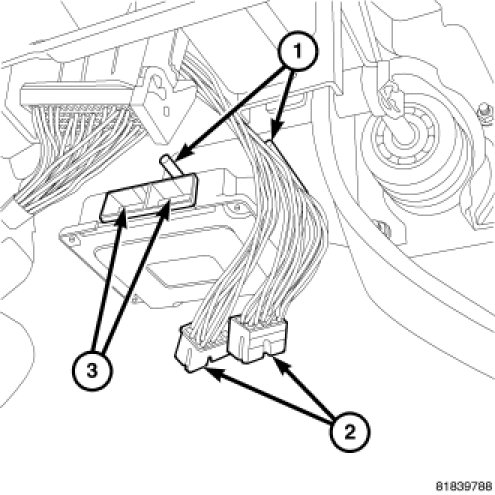

2. Unplug the two electrical connectors (2) at the TCM.

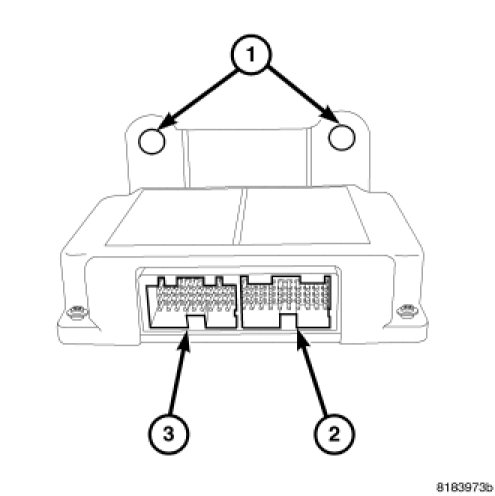

3. Remove the two nuts (1) that hold the TCM to the bulkhead.




4. Remove the TCM.
