Motor-Window-Right Rear

Component ID: 313

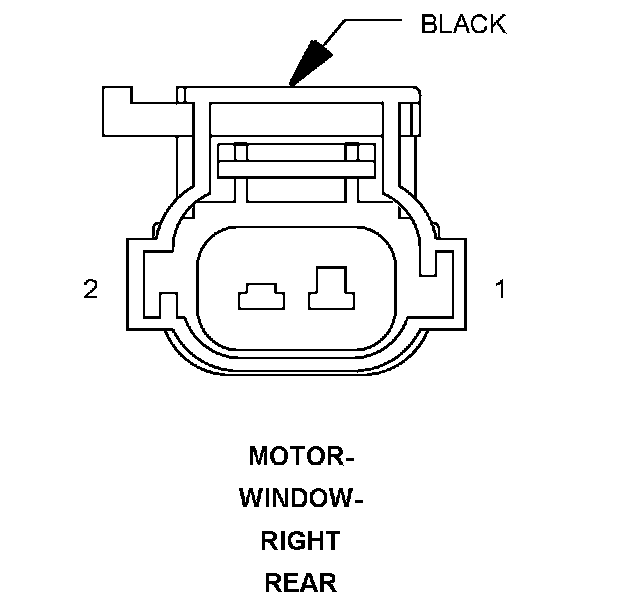

Component : MOTOR-WINDOW-RIGHT REAR

Connector:
Name : MOTOR-WINDOW-RIGHT REAR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 Q112 14OR/BR RIGHT REAR WINDOW DRIVER (UP)
2 Q212 14OR/VT RIGHT REAR WINDOW DRIVER (DOWN)

Component Location - 49
