Crankshaft Position Sensor - Installation

INSTALLATION

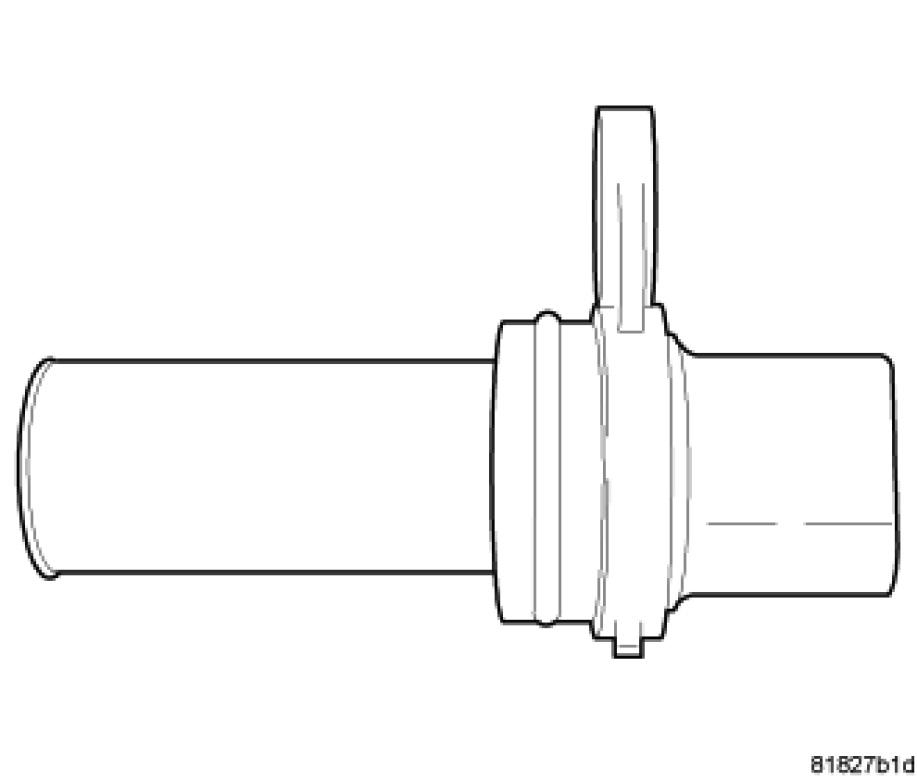

1. Check O-ring for damage and lubricate the O-ring with engine oil before installing sensor.
2. Use a twisting motion when installing the sensor.




3. Install and tighten the crankshaft position sensor bolt and tighten to 9 Nm (79.5 in. lbs.).

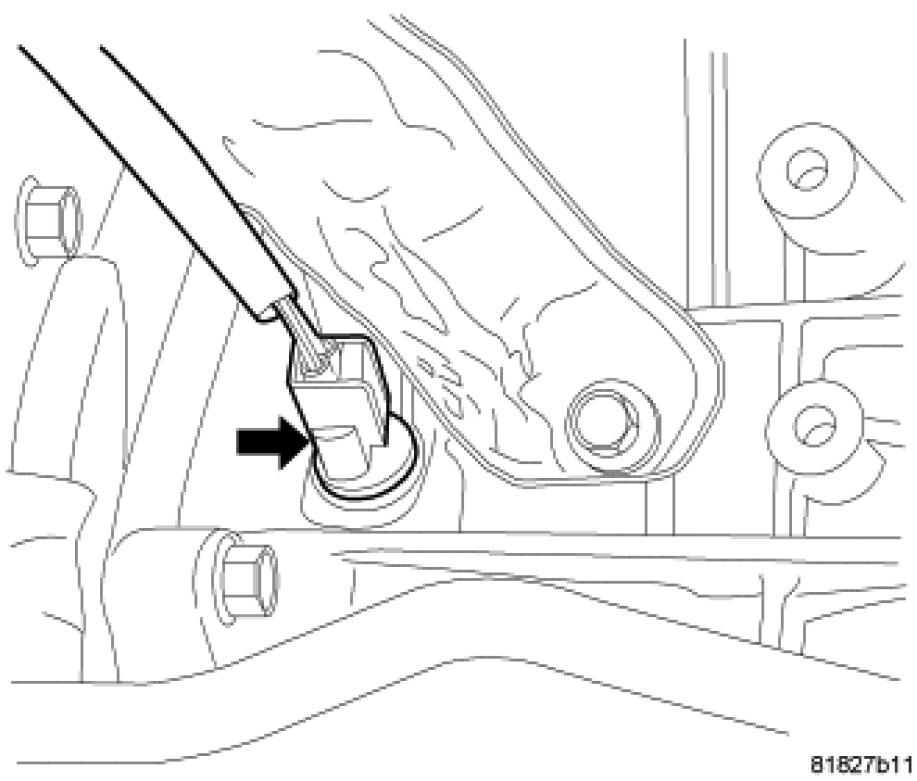

4. Connect and lock the electrical connector to the crankshaft position sensor.

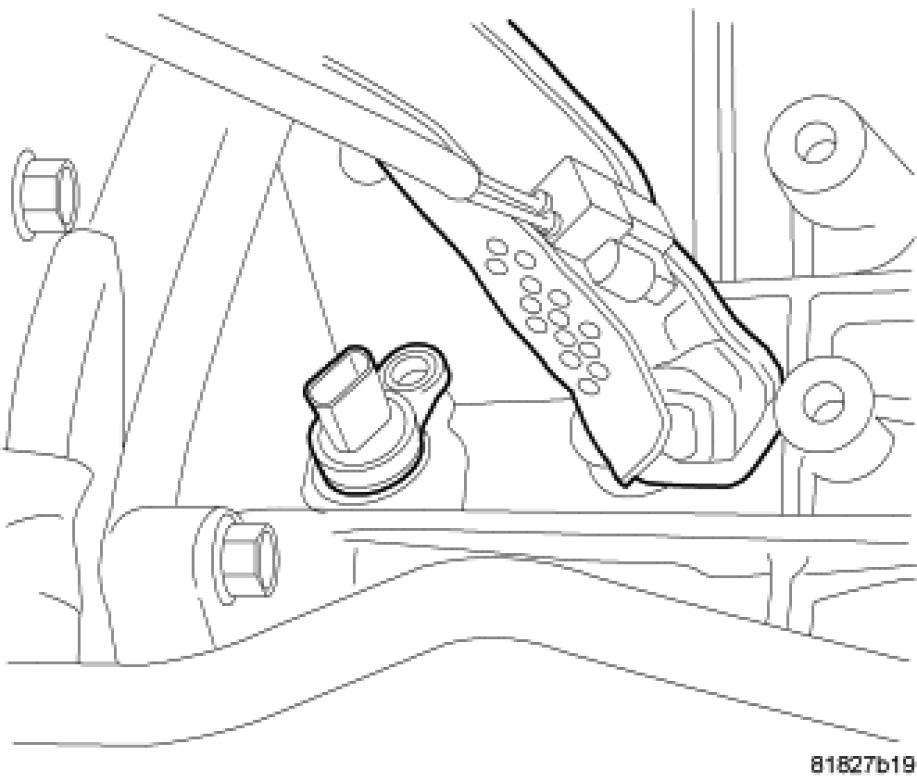

5. Install heat shield and retaining bolt.




If vehicle is All Wheel Drive the Power Transfer Unit must be installed. Installation

6. Lower vehicle.
7. Connect the negative battery cable.
