Sensor-Oxygen 1/1

Component ID: 142

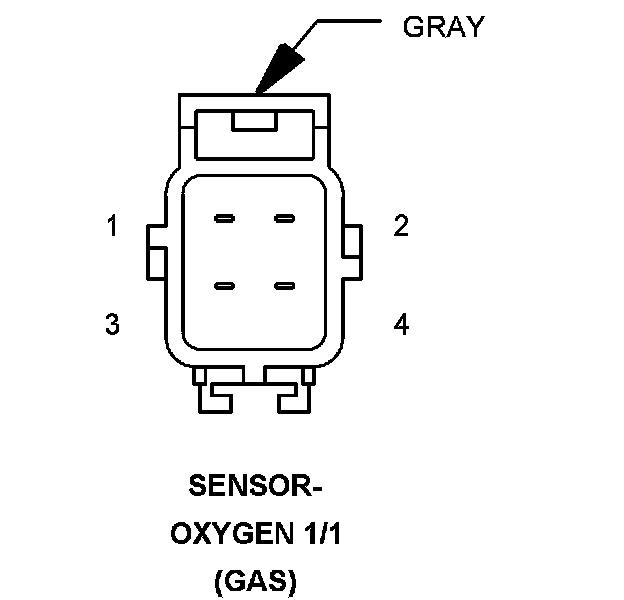

Component : SENSOR-OXYGEN 1/1

Connector:
Name : SENSOR-OXYGEN 1/1
Color : GRAY
# of pins : 4
Qualifier : (GAS)




Pin Circuit Description
1 Z909 20BK/WT GROUND
2 K99 20BR/OR O2 1/1 HEATER CONTROL
3 K902 20BR/DG O2 1/1 NEGATIVE CURRENT CONTROL
4 K41 20BK/DG O2 1/1 REFERENCE SIGNAL

Component Location - 14




Component Location - 16




Component Location - 17
