Tandem Fuel Pump: Installation: Installation

Fig 1: Fuel Pump Drive & Gasket

GC0055464

Courtesy of CHRYSLER LLC

Place new gasket (3) on pump (1).
Align pump drive (2) on pump.

Fig 2: Camshaft
Courtesy of CHRYSLER LLC
Insert pump drive into slot on camshaft (1).

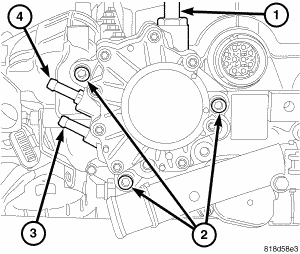

Fig 3: Fuel Pump
Courtesy of CHRYSLER LLC
Install pump retaining bolts (2) and tighten.
Install fuel feed line (4).
Install fuel return line (3).
