Valve - Manifold Flow

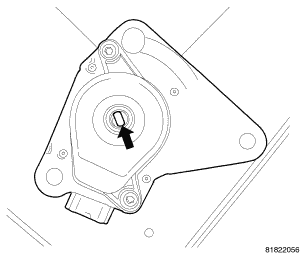

Fig 1: Flow Management Shaft Slot

Courtesy of CHRYSLER LLC

Make sure that slot in shaft is not damaged.

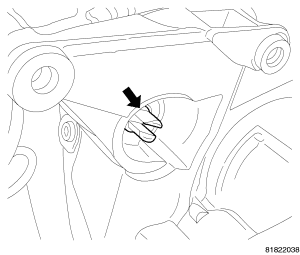

Fig 2: Flow Management Valve Shaft
Courtesy of CHRYSLER LLC
Make sure that tab in valve is not damaged.

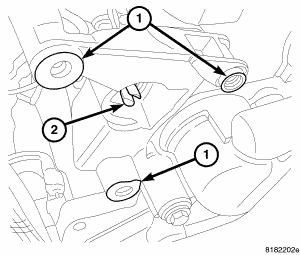

Fig 3: Flow Valve Shaft & Mount
Courtesy of CHRYSLER LLC
Align tab in valve with slot in intake manifold shaft (2) and rotate valve counterclockwise until valve drops onto location pin mounting (1).

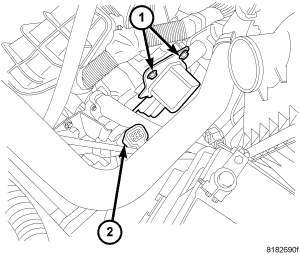

Fig 4: Electrical Connector
Courtesy of CHRYSLER LLC
Install mounting bolts (1) and tighten to 6 N.m (53 in. lbs.).
Connect electrical connector (2).
Install air tube.
Connect negative battery cable.
