Fuel Pump Module
CAUTION:
Whenever the fuel pump module is serviced, the rubber seal (gasket) must be replaced.
- Using a new seal (gasket), position fuel pump module into opening in fuel tank.

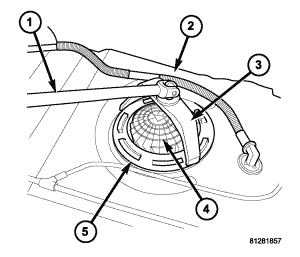

- Position lockring (5) over top of fuel pump module.
- Rotate module until embossed alignment arrow points to center alignment mark. This step must be performed to prevent float from contacting side of fuel tank.
- Install Lockring Remover/Installer 9340 (3) to lockring.
- Install 1/2 inch drive breaker (1) into Lockring Remover/Installer 9340 (3).
- Tighten lockring (clockwise) until all seven notches have engaged.
- Install fuel tank.
