Keyless Start Antenna: Description and Operation






DESCRIPTION

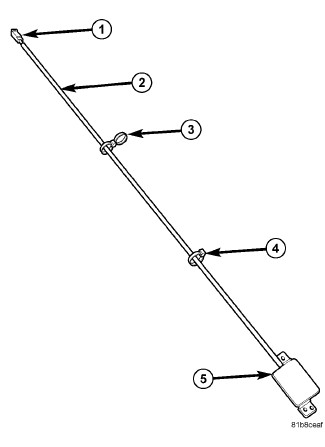

The Remote Start Antenna Module Assembly consists of an electrical connection to the Wireless Ignition Node (WIN) (1), a length of coax cable (2), mounting clips, or tie wraps (3) and (4), and a control module/antenna (5).
