Radiator Crossmember - Installation

INSTALLATION

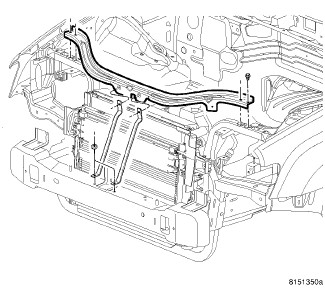

1. Install upper crossmember.
2. Install outer mounting bolts and tighten.
3. Install nuts attaching latch to radiator crossmember support. Tighten nuts to 11 Nm (8 ft. lbs.) torque.
4. Install grille assembly, Grille - Installation.
5. Install hood seal.
6. Check hood fit and adjust if required.
