Speed Control Switch - Installation






INSTALLATION

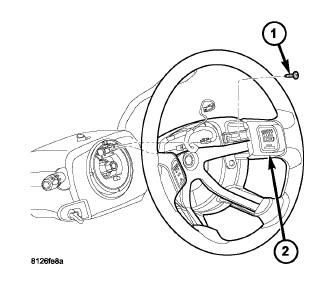

1. Position switch (2) to steering wheel.
2. Install switch mounting screw (1) and tighten.
3. Plug electrical connector into switch.
4. Install airbag module.
5. Connect negative battery cable to battery.
