Transmission Control Module C2 (NAG1) (Transmission) 12 Way

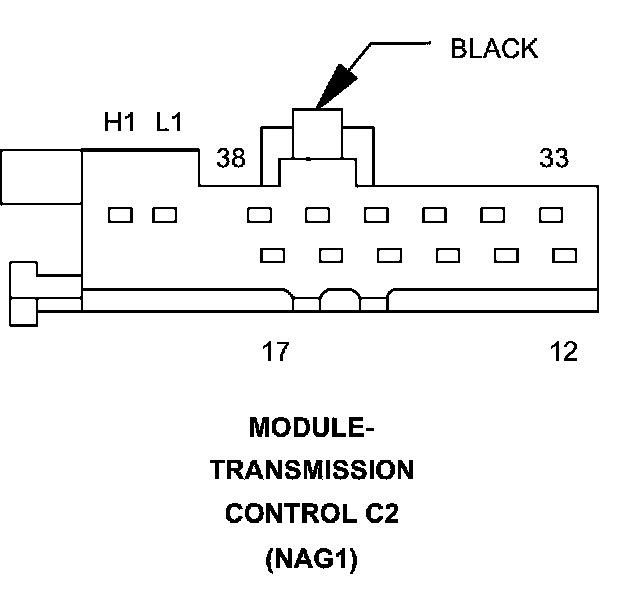

Connector C2 (NAG1) - (TRANSMISSION) 12 WAY

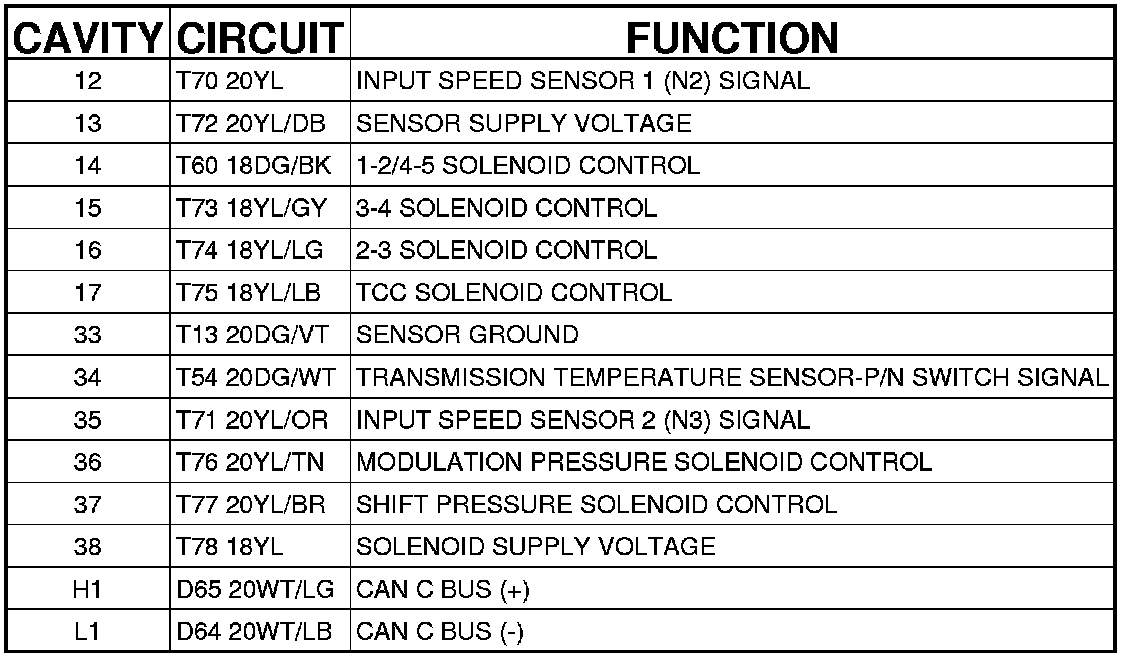

MODULE-TRANSMISSION CONTROL (NAG1) - (TRANSMISSION) 12 WAY
