System Diagram

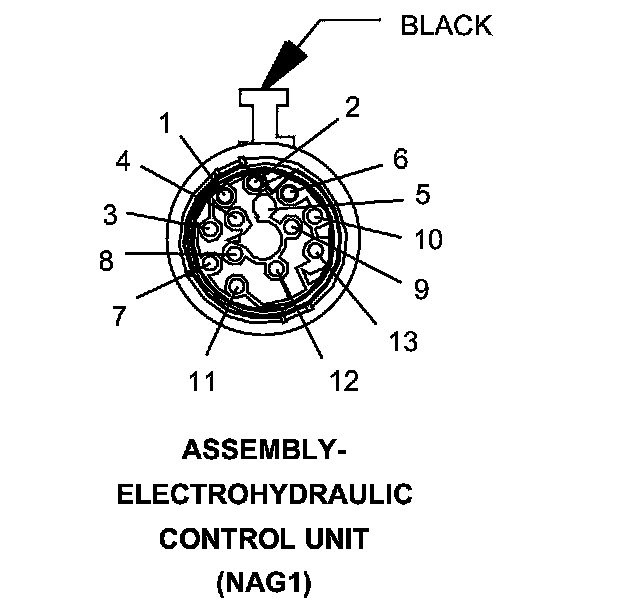

Connector (NAG1) - (INJECTOR) 13 WAY

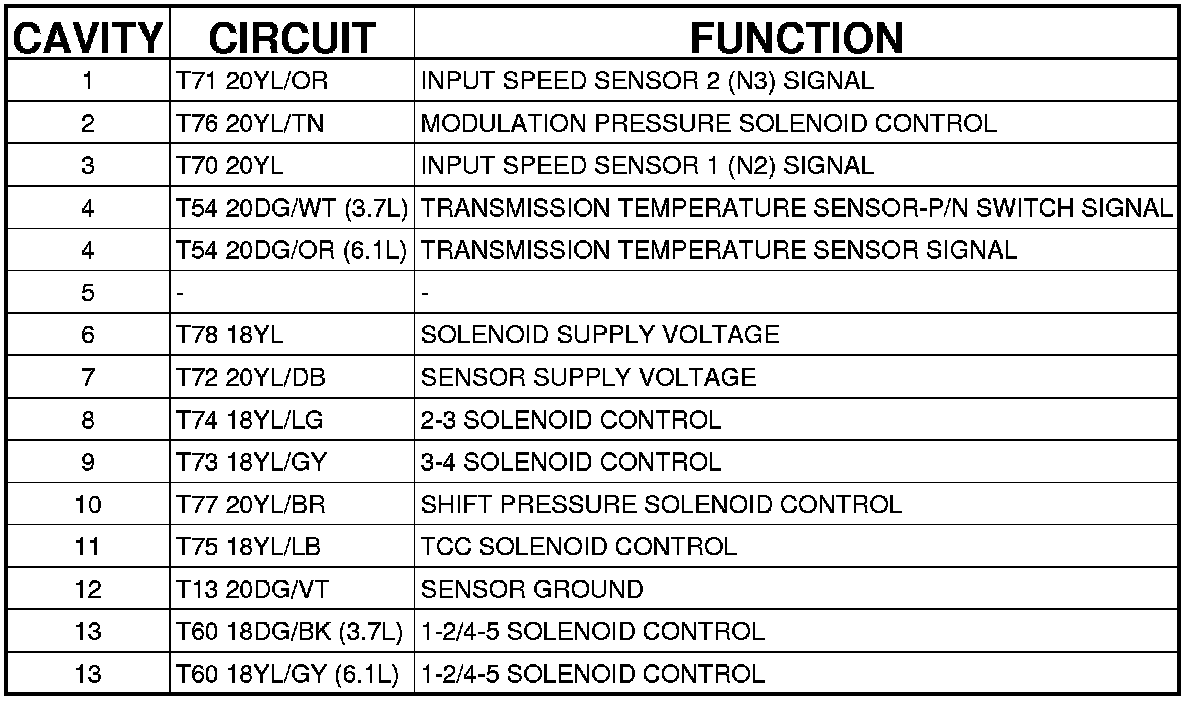

ASSEMBLY-ELECTROHYDRAULIC CONTROL UNIT (NAG1) - (INJECTOR) 13 WAY
