Transmission Control System Relay, A/T

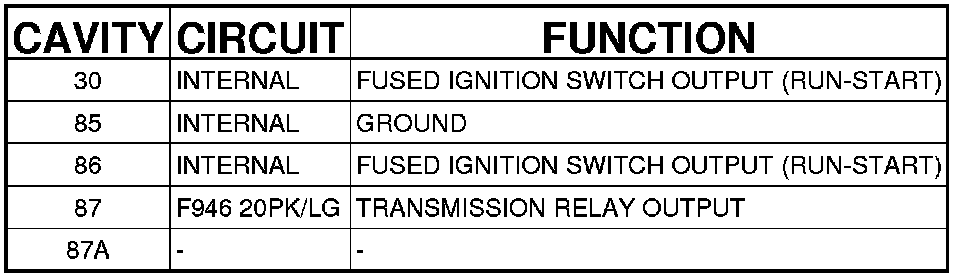

Connector (NAG1) - (IN JB)

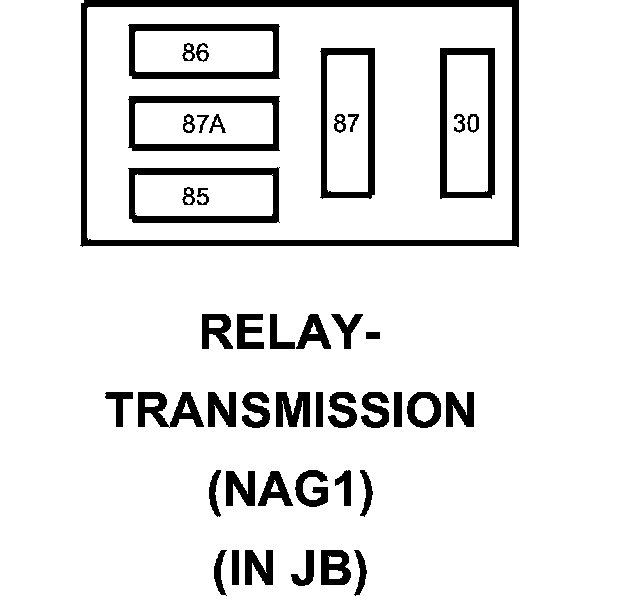

RELAY-TRANSMISSION (NAG1) - (IN JB)
