Brake Light Switch

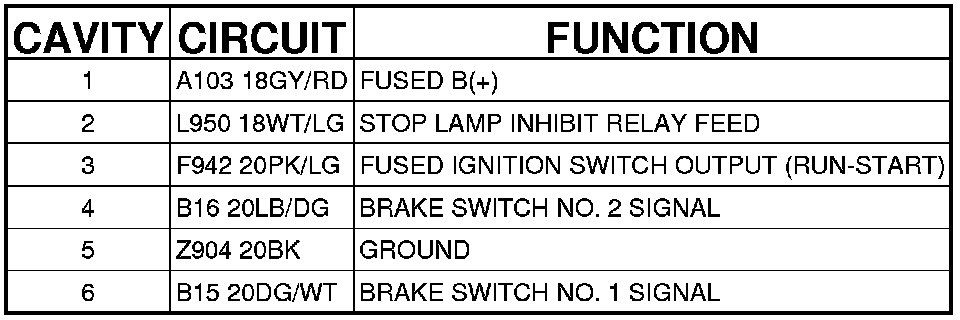

Connector - (HEADLAMP AND DASH) 6 WAY

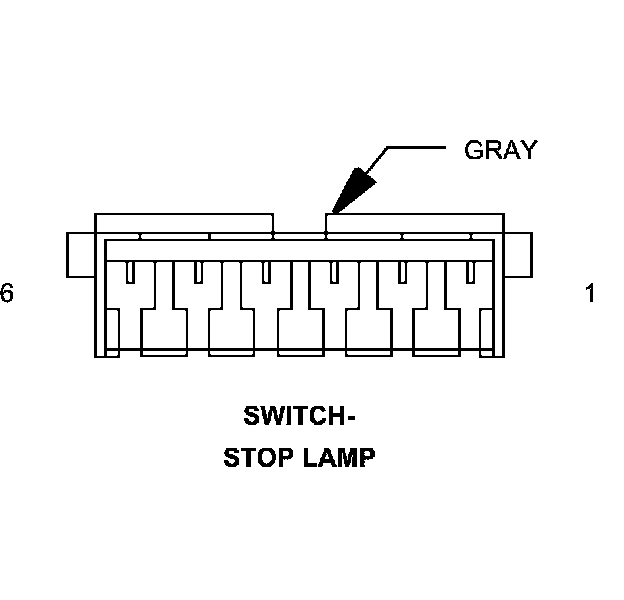

SWITCH-STOP LAMP - (HEADLAMP AND DASH) 6 WAY
